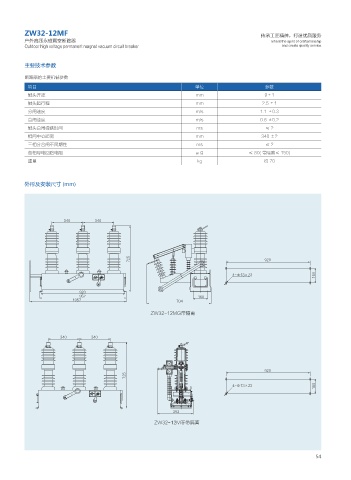

ZW32-12MF                                                                        传承工匠精神,打造优质服务
          户外高压永磁真空断路器                                                                         Inherit the spirit of craftsmanship
          Outdoor high voltage permanent magnet vacuum circuit breaker                            and create quality service


          主要技术参数

          断路器的主要机械参数
           项目                                                       单位                      参数
           触头开距                                                     mm                      9±1
           触头超行程                                                    mm                     2.5 ±1
           分闸速度                                                     m/s                   1.1 ±0.3
           合闸速度                                                     m/s                   0.6 ±0.2
           触头合闸弹跳时间                                                  ms                     ≤2
           相间中心距离                                                   mm                     340 ±2
           三相分合闸不同期性                                                 ms                     ≤2
           各相导电回路电阻                                                 μΩ                 ≤ 80( 带隔离≤ 150)
           重量                                                        kg                     约 70



          外形及安装尺寸 (mm)
















                                                                                   Ÿ  f





                                                     ;8     .(ፓ䯁⻨











                                                                                   Ÿ  f





                                                      ;8     .̺ፓ䯁⻨
