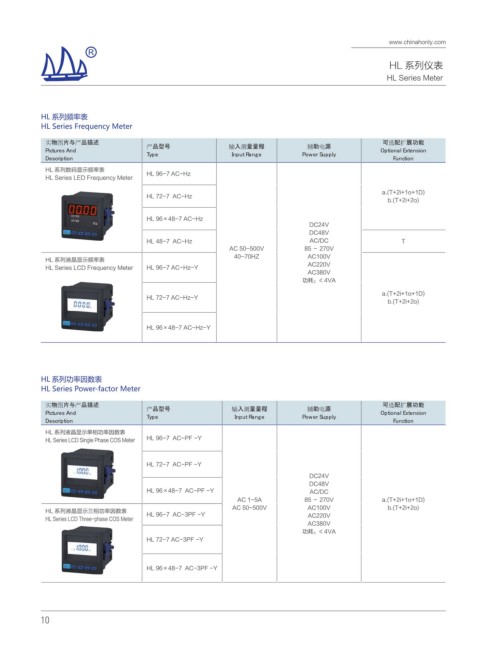

HL 系列仪表

HL Series Meter

HL 系列频率表
HL Series Frequency Meter

ൌ໾๭ோაӁ௖૭ඍ Ӂ௖྘ݼ ൻೆҩਈਈӱ ڣᇹ׈ჷ ॖ࿊஥ঔᅚۿି
͝ͶͰ΁΂ͿͲ΀Ḥ͎ͻͱ ͡ΆͽͲ ͖ͻͽ΂΁Ḥͮ͟ͻʹͲ ͝ͼ΄ͲͿḤ͠΂ͽͽ͹Ά ͜ͽ΁Ͷͼͻͮ͹Ḥ͒΅΁Ͳͻ΀Ͷͼͻ
͑Ͳ΀ͰͿͶͽ΁Ͷͼͻ ͓΂ͻͰ΁Ͷͼͻ
HL 系列数码显示频率表 HL 96-7 AC-Hz
HL Series LED Frequency Meter

a.(T+2i+1o+1D)
HL 72-7 AC-Hz
b.(T+2i+2o)
HL 96×48-7 AC-Hz
DC24V
DC48V
HL 48-7 AC-Hz AC/DC T
AC 50-500V 85 ～ 270V
40-70HZ AC100V
HL 系列液晶显示频率表
HL Series LCD Frequency Meter HL 96-7 AC-Hz-Y AC220V
AC380V
功耗：< 4VA
a.(T+2i+1o+1D)
HL 72-7 AC-Hz-Y
b.(T+2i+2o)

HL 96×48-7 AC-Hz-Y

HL 系列功率因数表
HL Series Power-factor Meter

ൌ໾๭ோაӁ௖૭ඍ Ӂ௖྘ݼ ൻೆҩਈਈӱ ڣᇹ׈ჷ ॖ࿊஥ঔᅚۿି
͝ͶͰ΁΂ͿͲ΀Ḥ͎ͻͱ ͡ΆͽͲ ͖ͻͽ΂΁Ḥͮ͟ͻʹͲ ͝ͼ΄ͲͿḤ͠΂ͽͽ͹Ά ͜ͽ΁Ͷͼͻͮ͹Ḥ͒΅΁Ͳͻ΀Ͷͼͻ
͑Ͳ΀ͰͿͶͽ΁Ͷͼͻ ͓΂ͻͰ΁Ͷͼͻ
HL 系列液晶显示单相功率因数表
HL Series LCD Single Phase COS Meter HL 96-7 AC-PF -Y

HL 72-7 AC-PF -Y
DC24V
DC48V
HL 96×48-7 AC-PF -Y AC/DC
AC 1~5A 85 ～ 270V a.(T+2i+1o+1D)
AC 50~500V AC100V b.(T+2i+2o)
HL 系列液晶显示三相功率因数表 HL 96-7 AC-3PF -Y
HL Series LCD Three-phase COS Meter AC220V
AC380V
功耗：< 4VA
HL 72-7 AC-3PF -Y

HL 96×48-7 AC-3PF -Y

10
