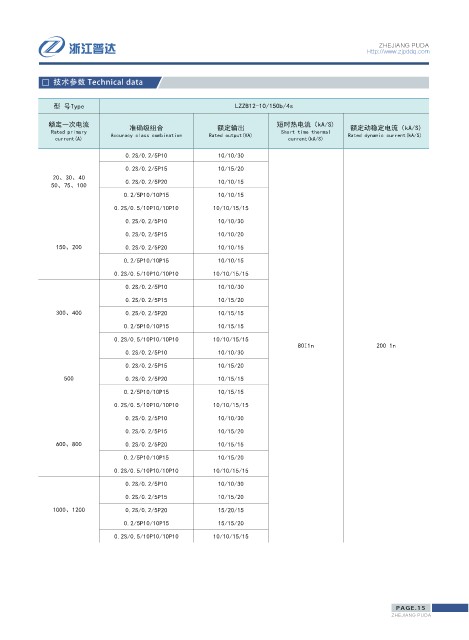

型 号Type LZZB12-10/150b/4s

额定一次电流 准确级组合 额定输出 短时热电流（kA/S) 额定动稳定电流（kA/S)
Rated primary Accuracy class combination Rated output(VA) Short time thermal Rated dynamic current(kA/S)
current(A) current(kA/S)

0.2S/0.2/5P10 10/10/30
0.2S/0.2/5P15 10/15/20
20、30、40
50、75、100 0.2S/0.2/5P20 10/10/15
0.2/5P10/10P15 10/10/15
0.2S/0.5/10P10/10P10 10/10/15/15
0.2S/0.2/5P10 10/10/30

0.2S/0.2/5P15 10/10/20
150、200 0.2S/0.2/5P20 10/10/15
0.2/5P10/10P15 10/10/15
0.2S/0.5/10P10/10P10 10/10/15/15
0.2S/0.2/5P10 10/10/30
0.2S/0.2/5P15 10/15/20
300、400 0.2S/0.2/5P20 10/15/15
0.2/5P10/10P15 10/15/15
0.2S/0.5/10P10/10P10 10/10/15/15
80I1n 200͖1n
0.2S/0.2/5P10 10/10/30
0.2S/0.2/5P15 10/15/20
500 0.2S/0.2/5P20 10/15/15
0.2/5P10/10P15 10/15/15
0.2S/0.5/10P10/10P10 10/10/15/15
0.2S/0.2/5P10 10/10/30

0.2S/0.2/5P15 10/15/20
600、800 0.2S/0.2/5P20 10/15/15
0.2/5P10/10P15 10/15/20
0.2S/0.5/10P10/10P10 10/10/15/15
0.2S/0.2/5P10 10/10/30
0.2S/0.2/5P15 10/15/20
1000、1200 0.2S/0.2/5P20 15/20/15
0.2/5P10/10P15 15/15/20
0.2S/0.5/10P10/10P10 10/10/15/15
