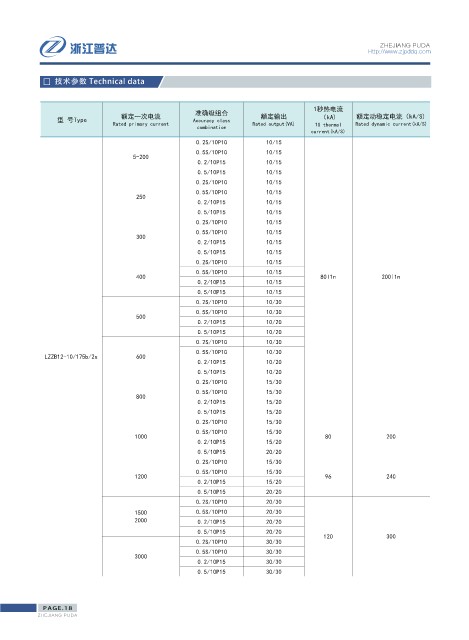

࠯ඌҕඔ 5FDIOJDBM EBUB

1秒热电流
准确级组合
额定一次电流 额定输出 （kA) 额定动稳定电流（kA/S)
型 号Type Accuracy class
Rated primary current Rated output(VA) 1S thermal Rated dynamic current(kA/S)
combination
current(kA/S)
0.2S/10P10 10/15
0.5S/10P10 10/15
5-200
0.2/10P15 10/15
0.5/10P15 10/15
0.2S/10P10 10/15
0.5S/10P10 10/15
250
0.2/10P15 10/15
0.5/10P15 10/15
0.2S/10P10 10/15
0.5S/10P10 10/15
300
0.2/10P15 10/15
0.5/10P15 10/15
0.2S/10P10 10/15
0.5S/10P10 10/15
400 80I1n 200I1n
0.2/10P15 10/15
0.5/10P15 10/15
0.2S/10P10 10/30
0.5S/10P10 10/30
500
0.2/10P15 10/20
0.5/10P15 10/20
0.2S/10P10 10/30
0.5S/10P10 10/30
LZZB12-10/175b/2s 600
0.2/10P15 10/20
0.5/10P15 10/20
0.2S/10P10 15/30
0.5S/10P10 15/30
800
0.2/10P15 15/20
0.5/10P15 15/20
0.2S/10P10 15/30
0.5S/10P10 15/30
1000 80 200
0.2/10P15 15/20
0.5/10P15 20/20
0.2S/10P10 15/30
0.5S/10P10 15/30
1200 96 240
0.2/10P15 15/20
0.5/10P15 20/20
0.2S/10P10 20/30
1500 0.5S/10P10 20/30
2000 0.2/10P15 20/20
0.5/10P15 20/20
120 300
0.2S/10P10 30/30
0.5S/10P10 30/30
3000
0.2/10P15 30/30
0.5/10P15 30/30
