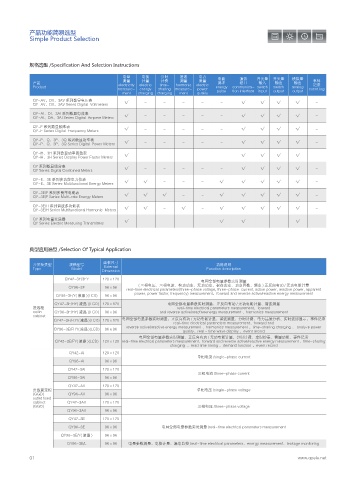

产品功能简易选型
Simple Product Selection

规格选型 /Specification And Selection Instructions

电量 电能 分时 谐波 电力
测量 计量 计费 测量 质量 电能 通讯 开关量 开关量 模拟量 事件
产品 electricity electric time- harmonic electric 脉冲 接口 输入 输出 输出 记录
Product measure- energy sharing measure- power energy communica- switch switch analog event log
ment charging charging ment quality pulse tion interface input output output
QY-AV、DV、3AV 系列数显电压表 √ - - - - - √ √ √ √ -
QY-AV、DV、3AV Series Digital Voltmeters
QY-AI、DI、3AI 系列数显电流表
QY-AI、DA、3AI Series Digital Ampere Meters √ - - - - - √ √ √ √ -
QY-F 系列数显频率表
QY-F Series Digital Frequency Meters √ - - - - - √ √ √ √ -
QY-P、Q、3P、3Q 系列数显功率表 √ - - - - - √ √ √ √ -
QY-P、Q、3P、3Q Series Digital Power Meters
QY-H、3H 系列数显功率因数表
QY-H、3H Series Display Power Factor Meters √ - - - - - √ √ √ √ -
QY 系列数显组合表
QY Series Digital Combined Meters √ - - - - - √ √ √ √ -
QY-E、3E 系列多功能电力仪表 √ √ - - - √ √ √ √ √ -
QY-E、3E Series Multifunctional Energy Meters
QY-3E/F 系列多费率电能表
QY-3E/F Series Multi-rate Energy Meters √ √ √ - - √ √ √ √ √ -
QY-3E/H 系列谐波多功能表
QY-3E/H Series Multifunctional Harmonic Meters √ √ - √ - √ √ √ √ √ -
QY 系列电量变送器 √ - - - - √ √ - - √ -
QY Series Electric Measuring Transmitters

典型应用选型 /Selection Of Typical Application

开关柜类型 规格型号 面框尺寸 功能说明
Type Model External Function description
Dimension
QY42-3E/3EY 120×120
电网全部电量参数实时测量
( 三相电压、三相电流、有功功率、无功功率、视在功率、功率因数、频率 ) 正反向有功 / 无功电能计量
QY96-3E 96×96
real-time electrical parameters(three-phase voltage, three-phase current, active power, reactive power, apparent
power, power factor, frequency) measurement、forward and reverse active/reactive energy measurement
QY96-3E/Y( 液晶 )(LCD) 96×96
QY42-3E/HY( 液晶 )(LCD) 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量、谐波测量
进线柜 real-time electrical parameters measurement、forward
coilin QY96-3E/HY( 液晶 )(LCD) 96×96 and reverse active/reactiveenergy measurement 、harmonics measurement
cabinet
QY42-3E/FDY( 液晶 )(LCD) 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量、谐波测量、分时计费、电力品质分析、实时波形显示、事件记录
real-time electrical parameters measurement、forward and
reverse active/reactive energy measurement 、harmonics measurement 、time-sharing charging 、 analyze power
QY96-3E/FHY( 液晶 )(LCD) 96×96
quality、real - time wave display 、event record
电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费、定时抄表、需量功能、事件记录
QY42-3E/FY( 液晶 )(LCD) 120×120 real-time electrical parameters measurement、forward and reverse active/reactive energy measurement 、time-sharing
charging 、read time timing 、demand function 、event record
QY42-AI 120×120
单相电流 /single-phase current
QY96-AI 96×96
QY42-3AI 120×120
三相电流 /three-phase current
QY96-3AI 96×96
QY42-AV 120×120
出线固定柜 单相电压 /single-phase voltage
(GGD) QY96-AV 96×96
outlet fixed
cabinet QY42-3AV 120×120
(GGD) 三相电压 /three-phase voltage
QY96-3AV 96×96
QY42-3E 120×120
QY96-3E 96×96 电网全部电量参数实时测量 /real-time electrical parameters measurement
QY96-3E/Y( 液晶 ) 96×96
QY96-3E/L 96×96 电量参数测量、电能计量、漏电监控 /real-time electrical parameters、energy measurement、leakage monitoring
