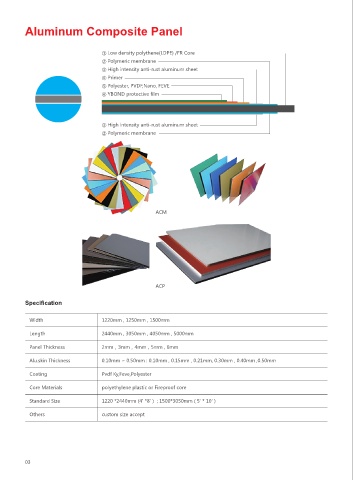

Aluminum Composite Panel

① Low density polythene(LDPE) /FR Core
② Polymeric membrane
③ High intensity anti-rust aluminum sheet
④ Primer
⑤ Polyester, PVDF,Nano, FEVE
⑥ YBOND protective film

③ High intensity anti-rust aluminum sheet
② Polymeric membrane

ACM

ACP

Specification

Width 1220mm , 1250mm , 1500mm

Length 2440mm , 3050mm , 4050mm , 5000mm
Panel Thickness 2mm，3mm，4mm，5mm , 6mm

Alu.skin Thickness 0.10mm ~ 0.50mm : 0.10mm , 0.15mm , 0.21mm, 0.30mm , 0.40mm ,0.50mm

Coating Pvdf Ky,Feve,Polyester

Core Materials polyethylene plastic or Fireproof core

Standard Size 1220 *2440mm (4' *8' ) ; 1500*3050mm ( 5' * 10' )
Others custom size accept

03
