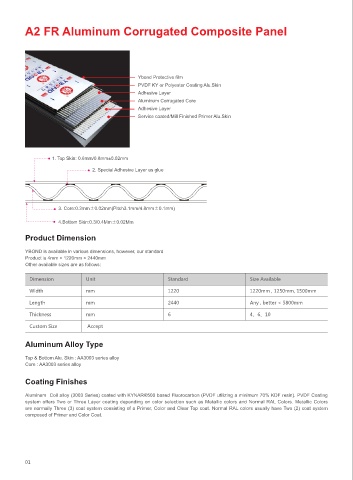

A2 FR Aluminum Corrugated Composite Panel

Ybond Protective film
PVDF KY or Polyester Coating Alu.Skin
Adhesive Layer
Aluminum Corrugated Core
Adhesive Layer
Service coated/Mill Finished Primer Alu.Skin

1. Top Skin: 0.6mm/0.8mm±0.02mm
2. Special Adhesive Layer as glue

3. Core:0.3mm±0.02mm(Pitch3.1mm/4.8mm±0.1mm)

4.Bottom Skin:0.3/0.4Mm±0.02Mm

Product Dimension

YBOND is available in various dimensions, however, our standard
Product is 4mm × 1220mm × 2440mm
Other available sizes are as follows:

Dimension Unit Standard Size Available
Width mm 1220 1220mm , 1250mm, 1500mm

Length mm 2440 Any , better < 5800mm

Thickness mm 6 4、6、10
Custom Size Accept

Aluminum Alloy Type

Top & Bottom Alu. Skin : AA3003 series alloy
Core : AA3003 series alloy

Coating Finishes

Aluminum Coil alloy (3003 Series) coated with KYNAR®500 based Fluorocarbon (PVDF utilizing a minimum 70% KDF resin). PVDF Coating
system offers Two or Three Layer coating depending on color selection such as Metallic colors and Normal RAL Colors. Metallic Colors
are normally Three (3) coat system consisting of a Primer, Color and Clear Top coat. Normal RAL colors usually have Two (2) coat system
composed of Primer and Color Coat.
