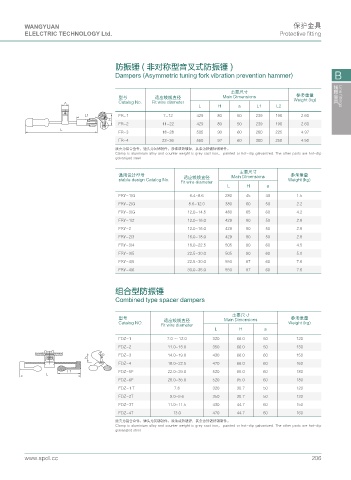

WANGYUAN 保护金具
ELELCTRIC TECHNOLOGY Ltd. Protective fitting

防振锤 ( 非对称型音叉式防振锤 )

Dampers (Asymmetric tuning fork vibration prevention hammer) B

主要尺寸
参考重量
型号 适应绞线直径 Main Dimensions Weight (kg) 线路金具 Line fittings
# Catalog No. Fit wire diameter
L H a L1 L2
. FR-1 7-12 429 80 50 239 190 2.60
*
FR-2 11~22 429 80 50 239 190 2.60
.
FR-3 18~28 505 90 60 280 225 4.97
FR-4 23~36 550 97 60 300 250 4.50
线夹为铝合金件，锤头为灰铸铁件，涂漆或热镀锌，其余为热镀锌钢制件。
Clamp is aluminium alloy and counter weight is grey cast iron， painted or hot-dip galvanized. The other parts are hot-dip
golvanized steel
主要尺寸
通用设计型号 适应绞线直径 Main Dimensions 参考重量
stable design Catalog No. Weight (kg)
Fit wire diameter
L H a
FRY-1/G 6.4~8.6 280 45 40 1.5
FRY-2/G 8.6~12.0 380 60 50 2.2
FRY-3/G 12.0~14.5 480 65 60 4.2
FRY-1/2 12.0~16.0 429 80 50 2.8
FRY-2 12.0~16.0 429 80 50 2.8
FRY-2/3 16.0~18.0 429 80 50 2.8
FRY-3/4 18.0~22.5 505 90 60 4.5
FRY-3/5 22.5~30.0 505 90 60 5.0
FRY-4/5 22.5~30.0 550 97 60 7.6
FRY-4/6 30.0~35.0 550 97 60 7.6

组合型防振锤
Combined type spacer dampers

主要尺寸
型号 适应绞线直径 Main Dimensions 参考重量
Catalog NO. Weight (kg)
Fit wire diameter
L H a
FDZ-1 7.0 〜 12.0 320 66.0 50 120
FDZ-2 11.0~15.0 350 66.0 50 130
FDZ-3 14.0~19.0 430 66.0 60 150
J
FDZ-4 18.0-22.5 470 66.0 60 160
. FDZ-5F 22.0~29.0 520 95.0 60 180
.
FDZ-6F 28.0~35.0 520 95.0 60 180
FDZ-1 T 7.8 320 30.7 50 120
FDZ-2T 9.0-9.6 350 30.7 50 130
FDZ-3T 11.0~11.5 430 44.7 60 150
FDZ-4T 13.0 470 44.7 60 160
线夹为铝合金件，锤头为灰铸铁件，涂漆或热镀锌，其余为热镀锌钢制件。
Clamp is aluminium alloy and counter weight is grey cast iron， painted or hot-dip galvanized. The other parts are hot-dip
golvanized steel
