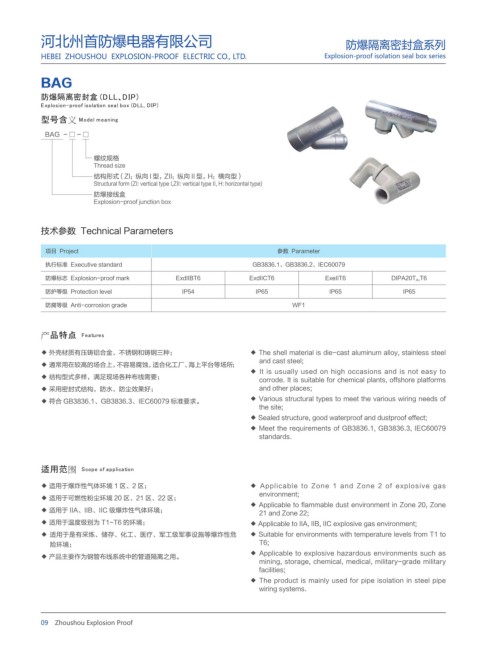

河北州首防爆电器有限公司 防爆隔离密封盒系列

HEBEI ZHOUSHOU EXPLOSION-PROOF ELECTRIC CO., LTD. Explosion-proof isolation seal box series

BAG
ٝЕۯ৖ૡٿއ ̵͙͙͑a̶͖͑͝ḤḤ
͒΅ͽ͹ͼ΀Ͷͼͻ̺ͽͿͼͼͳḤͶ΀ͼ͹ͮ΁ͶͼͻḤ΀Ͳͮ͹Ḥͯͼ΅Ḥ̵͙͙̹͑Ḥ̶͖͑͝
྘ݼݣၬ ͚ͼͱͲ͹ḤͺͲͮͻͶͻʹ
BAG - □ - □

螺纹规格
Thread size
结构形式（ZI：纵向 I 型，ZII：纵向 II 型，H：横向型）
Structural form (ZI: vertical type I,ZII: vertical type II, H: horizontal type)
防爆接线盒
Explosion-proof junction box

技术参数 Technical Parameters

项目 Project 参数 Parameter
执行标准 Executive standard GB3836.1、GB3836.2、IEC60079
防爆标志 Explosion-proof mark ExdIIBT6 ExdIICT6 ExeIIT6 DIPA20T A ,T6
防护等级 Protection level IP54 IP65 IP65 IP65

防腐等级 Anti-corrosion grade WF1

Ӂ௖หׄḤḤ ͓Ͳͮ΁΂ͿͲ΀

◆ 外壳材质有压铸铝合金、不锈钢和铸钢三种； ◆ The shell material is die-cast aluminum alloy, stainless steel
and cast steel;
◆ 通常用在较高的场合上，不容易腐蚀，适合化工厂、海上平台等场所；
◆ It is usually used on high occasions and is not easy to
◆ 结构型式多样，满足现场各种布线需要； corrode. It is suitable for chemical plants, offshore platforms
◆ 采用密封式结构，防水、防尘效果好； and other places;
◆ 符合 GB3836.1、GB3836.3、IEC60079 标准要求。 ◆ Various structural types to meet the various wiring needs of
the site;
◆ Sealed structure, good waterproof and dustproof effect;
◆ Meet the requirements of GB3836.1, GB3836.3, IEC60079
standards.

ൡႨٓຶḤḤ ͠ͰͼͽͲḤͼͳḤͮͽͽ͹ͶͰͮ΁Ͷͼͻ

◆ 适用于爆炸性气体环境 1 区、2 区； ◆ Applicable to Zone 1 and Zone 2 of explosive gas
environment;
◆ 适用于可燃性粉尘环境 20 区、21 区、22 区；
◆ Applicable to flammable dust environment in Zone 20, Zone
◆ 适用于 IIA、IIB、IIC 级爆炸性气体环境；
21 and Zone 22;
◆ 适用于温度级别为 T1~T6 的环境； ◆ Applicable to IIA, IIB, IIC explosive gas environment;
◆ 适用于是有采炼、储存、化工、医疗、军工级军事设施等爆炸性危 ◆ Suitable for environments with temperature levels from T1 to
险环境； T6;
◆ Applicable to explosive hazardous environments such as
◆ 产品主要作为钢管布线系统中的管道隔离之用。
mining, storage, chemical, medical, military-grade military
facilities;
◆ The product is mainly used for pipe isolation in steel pipe
wiring systems.

09 Zhoushou Explosion Proof
