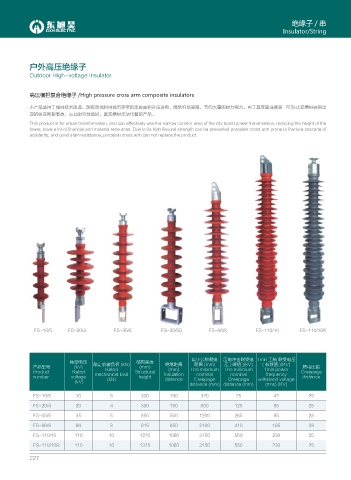

绝缘子 / 串
                                                                                                  Insulator/String





           户外高压绝缘子

           Outdoor High-voltage Insulator


           高压横担复合绝缘子 /High pressure cross arm composite insulators
           本产品适用于城网技术改造,能有效地利用城市狭窄的走廊面积升压送电,降低杆塔高度,节约大量的财力物力。由于其弯曲强度高 . 可 防止瓷横担容易出
           现的级连断裂事故,而且耐污性能好,是瓷横担无法代替的产品。
           This product is for urban transformation, and can effectively use the narrow corridor area of the city boost power transmission, reducing the height of the
           tower, save a lot of financial and material resources. Due to its high flexural strength can be prevented porcelain cross arm prone to fracture cascade of
           accidents, and good stain resistance, porcelain cross arm can not replace the product.








































             FS-10/5    FS-20/4         FS-35/5         FS-35/5D         FS-66/8         FS-110/10      FS-110/10R





                                                                   最小公称爬电     雷电冲击耐受电 1min 工频 耐受电压
                         额定电压                   结构高度
                                                                              压 ( 峰值 )(kV)
                                                                    距离 (mm)
            产品型号           (kV)  额定机械负荷 (kN)     (mm)     绝缘距离     The minimum  The minimum   ( 有效值 )(KV)  爬电比距
                                                           (mm)
                                                                                            1min power
                                     Rated
            Product       Rated   mechanical load   Structural   Insulation   nominal  nominal  frequency   Creepage
            number       voltage      (kN)       height   distance  Creepage   Creepage   withstand voltage   distance
                           (kV)
                                                                  distance (mm) distance (mm)  (rms) (KV)
            FS-10/5        10          5          330      190        320         75           42          25
            FS-20/4        20          4          330      190        600         125          65          25
            FS-35/5        35          5          650      500        1200        265          95          28
            FS-66/8        66          8          815      650        2100        410          185         28
            FS-110/10      110        10         1270      1060       3150        550          230         25
            FS-110/10R     110        10         1315      1060       3150        550          230         25
