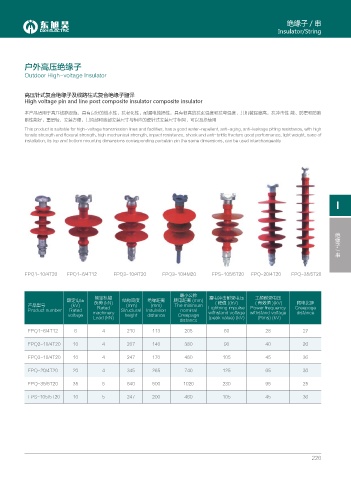

Page 245 - 四川东旭昊电气设备有限公司

绝缘子 / 串
Insulator/String

户外高压绝缘子

Outdoor High-voltage Insulator

高压针式复合绝缘子及线路柱式复合绝缘子翻译
High voltage pin and line post composite insulator composite insulator

本产品适用于高压线路设施，具有良好的憎水性，抗老化性，耐漏电蚀损性，具有很高的抗张强度和抗弯强度，其机械强度高，抗冲击性 能、防震和防脆
断性能好，重量轻，安装方便，其顶部和底部安装尺寸与相应的瓷针式安装尺寸相同，可以互换使用
This product is suitable for high-voltage transmission lines and facilities, has a good water-repellent, anti-aging, anti-leakage pitting resistance, with high
tensile strength and flexural strength, high mechanical strength, impact resistance, shock and anti-brittle fracture good performance, light weight, ease of
installation, its top and bottom mounting dimensions corresponding porcelain pin the same dimensions, can be used interchangeably

I

绝缘子

串 /

FPQ1-10/4T20 FPQ1-6/4T12 FPQ3-10/4T20 FPQ3-10/4M20 FPS-105/5T20 FPQ-20/4T20 FPQ-35/5T20

最小公称
额定机械 雷电冲击耐受电压 工频耐受电压
额定电压 结构高度 绝缘距离 爬电距离 (mm)
( 峰值 )(kV)
( 有效值 )(kV)
爬电比距
产品型号 (kV) 负荷 (kN) (mm) (mm) The minimum Lightning impulse Power frequency Creepage
Rated
Product number Rated machinery Structural Insulation nominal withstand voltage withstand voltage distance
voltage height distance Creepage
Load (kN) (peak value) (kV) (Rms) (kV)
distance
FPQ1-6/4T12 6 4 210 113 205 60 28 27
FPQ2-10/4T20 10 4 207 140 380 90 40 26
FPQ3-10/4T20 10 4 247 170 460 105 45 36
FPQ-20/4T20 20 4 345 265 740 125 65 30

FPQ-35/5T20 35 5 640 500 1020 230 95 25

FPS-105/5T20 10 5 247 200 460 105 45 36

226
