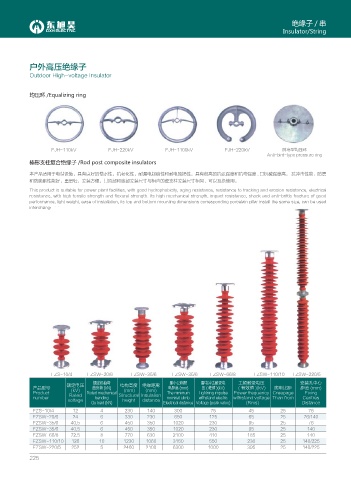

绝缘子 / 串
Insulator/String

户外高压绝缘子

Outdoor High-voltage Insulator

均压环 /Equalizing ring

FJH-110kV FJH-220kV FJH-1100kV FJH-220kV 防鸟型均压环
Anti-bird-type pressure ring
棒形支柱复合绝缘子 /Rod post composite insulators

本产品适用于电站设施，具有良好的憎水性，抗老化性，耐漏电起痕性和耐电蚀损性，具有很高的抗张强度和抗弯强度 . 其机械强度高， 抗冲击性能、防震
和防脆断性能好，重量轻，安装方便，其顶部和底部安装尺寸与相应的瓷支柱安装尺寸相同，可以互换使用。
This product is suitable for power plant facilities, with good hydrophobicity, aging resistance, resistance to tracking and erosion resistance, electrical
resistance, with high tensile strength and flexural strength. Its high mechanical strength, impact resistance, shock and anti-brittle fracture of good
performance, light weight, ease of installation, its top and bottom mounting dimensions corresponding porcelain pillar install the same size, can be used
interchangeably.

FZS-10/4 FZSW-20/6 FZSW-35/6 FZSW-35/6 FZSW-66/8 FZSW-110/10 FZSW-220/5
额定机械弯 最小公称爬 雷电冲击耐受电 工频耐受电压 安装孔中心
额定电压 结构高度 绝缘距离
产品型号 (kV) 曲负荷 (kN) (mm) (mm) 电距离 (mm) 压 ( 峰值 )(kV) ( 有效值 )(kV) 爬电比距 距离 (mm)
Product Rated Rated mechanical Structural Insulation The minimum Lightning impulse Power frequency Creepage Fixing
number bending nominal climb withstand electric withstand voltage Than from Centres
voltage height distance
Qu load (kN) Electrical distance Voltage (peak value) (Rms) Distance
FZS-10/4 12 4 230 140 300 75 45 25 76
FZSW-20/6 24 6 330 230 650 125 65 25 76/140
FZSW-35/6 40.5 6 450 350 1020 230 95 25 76
FZSW-35/6 40.5 6 450 350 1020 230 95 25 140
FZSW-66/8 72.5 8 770 630 2100 410 185 25 140
FZSW-110/10 126 10 1230 1060 3150 550 230 25 140/225
FZSW-220/5 252 5 2460 2100 6300 1000 395 25 140/225
225
