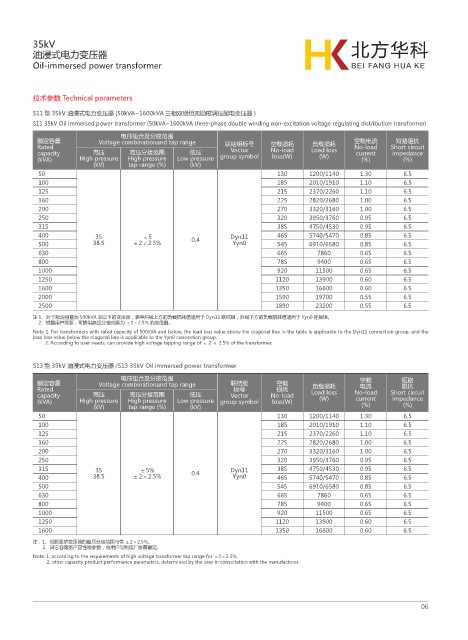

35kV
油浸式电力变压器
Oil-immersed power transformer

技术参数 Technical parameters

S11 型 35kV 油浸式电力变压器 (50kVA~1600kVA 三相双绕组无励磁调压配电变压器 )
S11 35kV Oil immersed power transformer (50kVA~1600kVA three-phase double winding non-excitation voltage regulating distribution transformer)
电压组合及分接范围
额定容量 Voltage combinationand tap range 空载电流 短路阻抗
Rated 联结组标号 空载损耗 负载损耗 No-load Short circuit
capacity 高压 高压分接范围 低压 Vector No-load Load loss current impedance
(kVA) High pressure High pressure Low pressure group symbol loss(W) (W) (%) (%)
(kV) tap range (%) (kV)
50 130 1200/1140 1.30 6.5
100 185 2010/1910 1.10 6.5
125 215 2370/2260 1.10 6.5
160 225 2820/2680 1.00 6.5
200 270 3320/3160 1.00 6.5
250 320 3950/3760 0.95 6.5
315 385 4750/4530 0.95 6.5
400 35 ±5 0.4 Dyn11 465 5740/5470 0.85 6.5
500 38.5 ±2×2.5% Yyn0 545 6910/6580 0.85 6.5
630 665 7860 0.65 6.5
800 785 9400 0.65 6.5
1000 920 11500 0.65 6.5
1250 1120 13900 0.60 6.5
1600 1350 16600 0.60 6.5
2000 1590 19700 0.55 6.5
2500 1890 23200 0.55 6.5
注 1、对于额定容量为 500kVA 及以下的变压器，表中斜线上方的负载损耗值适用于 Dyn11 联结组，斜线下方的负载损耗值适用于 Yyn0 连接组。
2、根据用户需要，可提供高压分接范围为 ±2×2.5% 的变压器。
Note 1. For transformers with rated capacity of 500kVA and below, the load loss value above the diagonal line in the table is applicable to the Dyn11 connection group, and the
load loss value below the diagonal line is applicable to the Yyn0 connection group.
2. According to user needs, can provide high voltage tapping range of ± 2 × 2.5% of the transformer.

S13 型 35kV 油浸式电力变压器 /S13 35kV Oil immersed power transformer
电压组合及分接范围 空载 短路
额定容量 Voltage combinationand tap range 联结组 空载 负载损耗 电流 阻抗
Rated 标号 损耗 Load loss No-load Short circuit
capacity 高压 高压分接范围 低压 Vector No-load (W) current impedance
(kVA) High pressure High pressure Low pressure group symbol loss(W)
(kV) tap range (%) (kV) (%) (%)
50 130 1200/1140 1.30 6.5
100 185 2010/1910 1.10 6.5
125 215 2370/2260 1.10 6.5
160 225 2820/2680 1.00 6.5
200 270 3320/3160 1.00 6.5
250 320 3950/3760 0.95 6.5
315 35 ±5% 0.4 Dyn11 385 4750/4530 0.95 6.5
400 38.5 ±2×2.5% Yyn0 465 5740/5470 0.85 6.5
500 545 6910/6580 0.85 6.5
630 665 7860 0.65 6.5
800 785 9400 0.65 6.5
1000 920 11500 0.65 6.5
1250 1120 13900 0.60 6.5
1600 1350 16600 0.60 6.5
注：1、根据要求变压器的高压分接范围可供 ±2×2.5%。
2、其它容量的产品性能参数，由用户与制造厂协商确定。
Note: 1, according to the requirements of high voltage transformer tap range for ±2×2.5%.
2, other capacity product performance parameters, determined by the user in consultation with the manufacturer.
