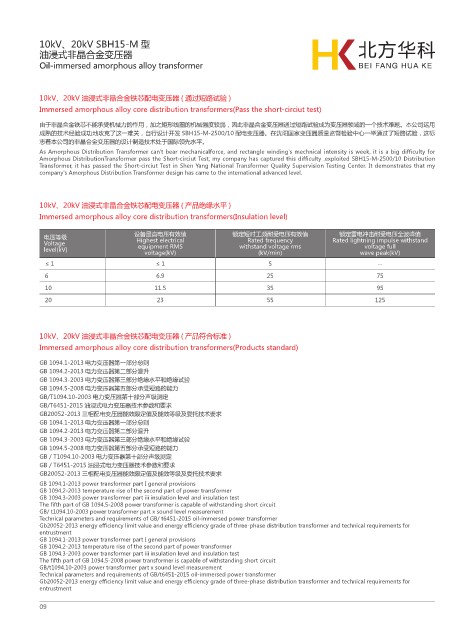

10kV、20kV SBH15-M 型
油浸式非晶合金变压器
Oil-immersed amorphous alloy transformer

10kV、20kV 油浸式非晶合金铁芯配电变压器 ( 通过短路试验 )
Immersed amorphous alloy core distribution transformers(Pass the short-circiut test)

由于非晶合金铁芯不能承受机械力的作用，加之矩形线圈的机械强度较弱，因此非晶合金变压器通过短路试验成为变压器领域的一个技术难题。本公司运用
成熟的技术经验成功地攻克了这一难关，自行设计开发 SBH15-M-2500/10 配电变压器。在沈阳国家变压器质量监督检验中心一举通过了短路试验，这标
志着本公司的非晶合金变压器的设计制造技术处于国际领先水平。
As Amorphous Distribution Transformer can't bear mechanicalforce, and rectangle winding's mechnical intensity is week, it is a big difficulty for
Amorphous DistributionTransformer pass the Short-circiut Test, my company has captured this difficulty .exploited SBH15-M-2500/10 Distribution
Transformer, it has passed the Short-circiut Test in Shen Yang National Transformer Quality Supervision Testing Center. It demonstrates that my
company's Amorphous Distribution Transformer design has came to the international advanced level.

10kV、20kV 油浸式非晶合金铁芯配电变压器 ( 产品绝缘水平 )
Immersed amorphous alloy core distribution transformers(Insulation level)

设备最高电压有效值 额定短时工频耐受电压有效值 额定雷电冲击耐受电压全波峰值
电压等级 Highest electrical Rated frequency Rated lightning impulse withstand
Voltage equipment RMS withstand voltage rms voltage full
level(kV)
voltage(kV) (kV/min) wave peak(kV)
≤1 ≤1 5 --
6 6.9 25 75
10 11.5 35 95
20 23 55 125

10kV、20kV 油浸式非晶合金铁芯配电变压器 ( 产品符合标准 )
Immersed amorphous alloy core distribution transformers(Products standard)

GB 1094.1-2013 电力变压器第一部分总则
GB 1094.2-2013 电力变压器第二部分温升
GB 1094.3-2003 电力变压器第三部分绝缘水平和绝缘试验
GB 1094.5-2008 电力变压器第五部分承受短路的能力
GB/T1094.10-2003 电力变压器第十部分声级测定
GB/T6451-2015 油浸式电力变压器技术参数和要求
GB20052-2013 三相配电变压器能效限定值及能效等级及委托技术要求
GB 1094.1-2013 电力变压器第一部分总则
GB 1094.2-2013 电力变压器第二部分温升
GB 1094.3-2003 电力变压器第三部分绝缘水平和绝缘试验
GB 1094.5-2008 电力变压器第五部分承受短路的能力
GB / T1094.10-2003 电力变压器第十部分声级测定
GB / T6451-2015 油浸式电力变压器技术参数和要求
GB20052-2013 三相配电变压器能效限定值及能效等级及委托技术要求
GB 1094.1-2013 power transformer part I general provisions
GB 1094.2-2013 temperature rise of the second part of power transformer
GB 1094.3-2003 power transformer part iii insulation level and insulation test
The fifth part of GB 1094.5-2008 power transformer is capable of withstanding short circuit
GB/ t1094.10-2003 power transformer part x sound level measurement
Technical parameters and requirements of GB/ t6451-2015 oil-immersed power transformer
Gb20052-2013 energy efficiency limit value and energy efficiency grade of three-phase distribution transformer and technical requirements for
entrustment
GB 1094.1-2013 power transformer part I general provisions
GB 1094.2-2013 temperature rise of the second part of power transformer
GB 1094.3-2003 power transformer part iii insulation level and insulation test
The fifth part of GB 1094.5-2008 power transformer is capable of withstanding short circuit
GB/t1094.10-2003 power transformer part x sound level measurement
Technical parameters and requirements of GB/t6451-2015 oil-immersed power transformer
Gb20052-2013 energy efficiency limit value and energy efficiency grade of three-phase distribution transformer and technical requirements for
entrustment
