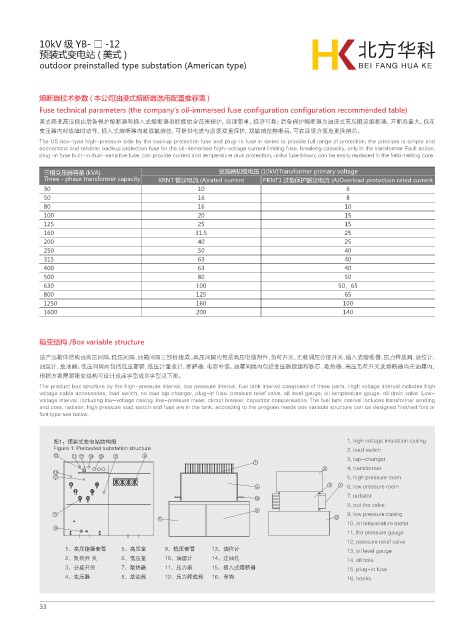

10kV 级 YB- □ -12
预装式变电站 ( 美式 )
outdoor preinstalled type substation (American type)
熔断器技术参数 ( 本公司油浸式熔断器选用配置推荐表 )
Fuse technical parameters (the company's oil-immersed fuse configuration configuration recommended table)
美式箱变高压侧由后备保护熔断器和插入式熔断器串联提供全范围保护，原理简单，经济可靠；后备保护熔断器为油浸式高压限流熔断器，开断容量大，仅在
变压器内部故障时动作，插入式熔断器内装双敏熔丝，可提供电流与温度双重保护，双敏熔丝熔断后，可在现场方便地更换熔芯。
The US box-type high-pressure side by the backup protection fuse and plug-in fuse in series to provide full range of protection, the principle is simple and
economical and reliable; backup protection fuse for the oil-immersed high-voltage current limiting fuse, breaking capacity, only in the transformer Fault action,
plug-in fuse built-in dual-sensitive fuse, can provide current and temperature dual protection, unika fuse blown, can be easily replaced in the field melting core.
三相变压器容量 (kVA) 变压器初级电压 (10kV)Transformer primary voltage
Three - phase transformer capacity XRNT 额定电流 (A)rated current PRNT1 过载保护额定电流 (A)Overload protection rated current
30 10 6
50 16 8
80 16 10
100 20 15
125 25 15
160 31.5 25
200 40 25
250 50 40
315 63 40
400 63 40
500 80 50
630 100 50、65
800 125 65
1250 160 100
1600 200 140
箱变结构 /Box variable structure
该产品箱体结构由高压间隔、低压间隔、油箱间隔三部份组成。高压间隔内包括高压电缆附件、负荷开关、无载调压分接开关、插入式熔断器、压力释放阀、油位计、
油温计、放油阀。低压间隔内包括低压套管、低压计量表计、断路器、电容补偿。油箱间隔内包括变压器绕组和铁芯、散热器、高压负荷开关及熔断器均在油箱内，
根据方案需要箱变结构可设计成品字型或目字型见下图。
The product box structure by the high-pressure interval, low pressure interval, fuel tank interval composed of three parts. High voltage interval includes high
voltage cable accessories, load switch, no load tap changer, plug-in fuse, pressure relief valve, oil level gauge, oil temperature gauge, oil drain valve. Low-
voltage interval, including low-voltage casing, low-pressure meter, circuit breaker, capacitor compensation. The fuel tank interval includes transformer winding
and core, radiator, high pressure load switch and fuse are in the tank, according to the program needs box variable structure can be designed finished font or
font type see below.
ڎ ὙᮔᜈयԪႂቢፆౝڎ 1, high voltage insulation casing
'JHVSF 1SFMPBEFE TVCTUBUJPO TUSVDUVSF 2, load switch
3, tap-changer
4, transformer
5, high pressure room
6, low pressure room
7, radiator
8, put the valve
9, low pressure casing
10, oil temperature meter
11, the pressure gauge
12, pressure relief valve
NjᰳԌፏᎅݒክ NjᰳԌࠈ NjͯԌݒክ Njෳͮ 13, oil level gauge
Nj᠆ᕲध С NjͯԌࠈ Njෳຝ Njซෳߗ 14, oil hole
NjѫଋधС Njབ٧ NjԌҦᛪ NjଢЙयོற٧ 15, plug-in fuse
NjԪԌ٧ Njஉෳ NjԌҦ᧕உ NjՍᨈ 16, hooks
