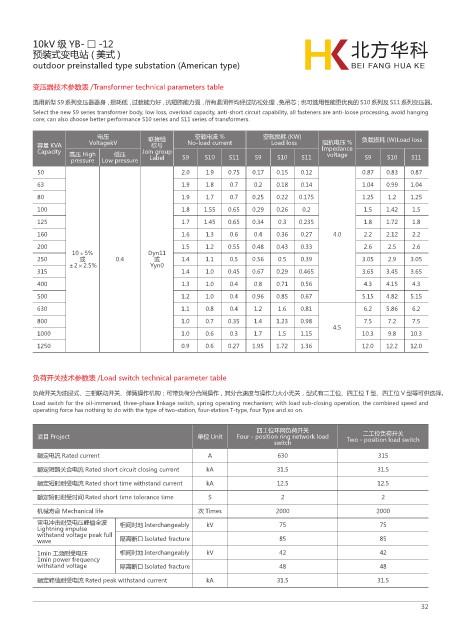

10kV 级 YB- □ -12
          预装式变电站 ( 美式 )
          outdoor preinstalled type substation (American type)

          变压器技术参数表 /Transformer technical parameters table

          选用新型 S9 系列变压器器身,损耗低,过载能力好,抗短路能力强,所有紧固件均经过防松处理,免吊芯;也可选用性能更优良的 S10 系列及 S11 系列变压器。
          Select the new S9 series transformer body, low loss, overload capacity, anti-short circuit capability, all fasteners are anti-loose processing, avoid hanging
          core; can also choose better performance S10 series and S11 series of transformers.
                          电压           联接组         空载电流 %            空载损耗 (KW)                负载损耗 (W)Load loss
                                                                                    阻抗电压 %
           容量 KVA       VoltagekV       标号       No-load current        Load loss   Impedance
           Capacity  高压 High   低压     Join group                                     voltage
                   pressure  Low pressure  Label  S9  S10   S11    S9    S10   S11             S9    S10   S11
           50                                   2.0   1.9   0.75  0.17  0.15   0.12           0.87   0.83  0.87
           63                                   1.9   1.8   0.7    0.2  0.18   0.14           1.04   0.99  1.04
           80                                   1.9   1.7   0.7   0.25  0.22  0.175           1.25   1.2   1.25
           100                                  1.8   1.55  0.65  0.29  0.26   0.2             1.5   1.42  1.5
           125                                  1.7   1.45  0.65  0.34   0.3  0.235            1.8   1.72  1.8
           160                                  1.6   1.3   0.6    0.4  0.36   0.27    4.0     2.2   2.12  2.2
           200                                  1.5   1.2   0.55  0.48  0.43   0.33            2.6   2.5   2.6
                    10±5%              Dyn11
           250        或        0.4       或      1.4   1.1   0.5   0.56   0.5   0.39           3.05   2.9   3.05
                   ±2×2.5%              Yyn0
           315                                  1.4   1.0   0.45  0.67  0.29  0.465           3.65   3.45  3.65
           400                                  1.3   1.0   0.4    0.8  0.71   0.56            4.3   4.15  4.3
           500                                  1.2   1.0   0.4   0.96  0.85   0.67           5.15   4.82  5.15
           630                                  1.1   0.8   0.4    1.2   1.6   0.81            6.2   5.86  6.2
           800                                  1.0   0.7   0.35   1.4  1.23   0.98            7.5   7.2   7.5
                                                                                       4.5
           1000                                 1.0   0.6   0.3    1.7   1.5   1.15           10.3   9.8   10.3
           1250                                 0.9   0.6   0.27  1.95  1.72   1.36           12.0   12.2  12.0



          负荷开关技术参数表 /Load switch technical parameter table

         负荷开关为油浸式、三相联动开关、弹簧操作机构;可带负荷分合闸操作,其分合速度与操作力大小无关,型式有二工位、四工位 T 型、四工位 V 型等可供选择。
          Load switch for the oil-immersed, three-phase linkage switch, spring operating mechanism; with load sub-closing operation, the combined speed and
          operating force has nothing to do with the type of two-station, four-station T-type, four Type and so on.

                                                                   四工位环网负荷开关
                                                                                               二工位负荷开关
           项目 Project                               单位 Unit   Four - position ring network load   Two - position load switch
                                                                        switch
           额定电流 Rated current                          A                 630                       315
           额定短路关合电流 Rated short circuit closing current  kA             31.5                      31.5
           额定短时耐受电流 Rated short time withstand current  kA              12.5                      12.5

           额定短时耐受时间 Rated short time tolerance time    S                  2                        2
           机械寿命 Mechanical life                     次 Times             2000                      2000
           雷电冲击耐受电压峰值全波         相间对地 Interchangeably  kV                 75                        75
           Lightning impulse
           withstand voltage peak full
           wave                 隔离断口 Isolated fracture                   85                        85
           1min 工频耐受电压          相间对地 Interchangeably  kV                 42                        42
           1min power frequency
           withstand voltage    隔离断口 Isolated fracture                   48                        48
           额定峰值耐受电流 Rated peak withstand current      kA                31.5                      31.5
