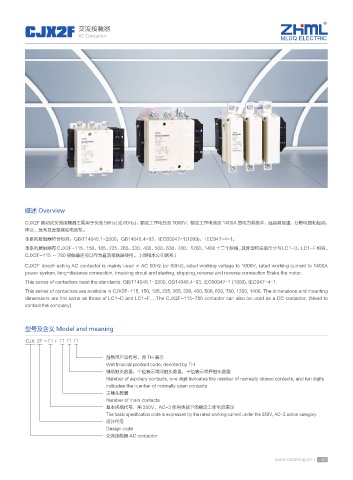

CJX2F 交流接触器
AC Contactor
MLDQ ELECTRIC

概述 Overview
CJX2F 直动式交流接触器主要用于交流 50Hz( 或 60Hz)，额定工作电压至 1000V，额定工作电流至 1400A 的电力系统中，远距离接通，分断电路和起动，
停止、反向及反接制动电动机。
本系列接触器符合标准：GB/T14048.1-2000，GB14048.4-93，IEC60947-1(1999)， IEC947-4-1。
本系列接触器有 CJX2F-115、150、185、225、265、330、400、500、630、780、 1200、1400 十二个规格 , 其外型和安装尺寸与 LC1-D、LC1-F 相同。
CJX2F-115 ～ 780 接触器还可以作为直流接触器使用。（须和本公司联系）
CJX2F direct-acting AC contactor is mainly used in AC 50Hz (or 60Hz), rated working voltage to 1000V, rated working current to 1400A
power system, long-distance connection, breaking circuit and starting, stopping, reverse and reverse connection Brake the motor.
This series of contactors meet the standards: GB/T14048.1-2000, GB14048.4-93, IEC60947-1 (1999), IEC947-4-1.
This series of contactors are available in CJX2F-115, 150, 185, 225, 265, 330, 400, 500, 630, 780, 1200, 1400. The dimensions and mounting
dimensions are the same as those of LC1-D and LC1-F. . The CJX2F-115~780 contactor can also be used as a DC contactor. (Need to
contact the company)

型号及含义 Model and meaning

CJX 2F - □ / □ □ □

湿热带产品代号，用 TH 表示
Wet tropical product code, denoted by TH
辅助触头数量，个位表示常闭触头数量，十位表示常开触头数量
Number of auxiliary contacts, one digit indicates the number of normally closed contacts, and ten digits
indicates the number of normally open contacts
主触头数量
Number of main contacts
基本规格代号，用 380V，AC-3 作用类别下的额定工作电流表示
The basic specification code is expressed by the rated working current under the 380V, AC-3 action category.
Note 1: 设计代号
09A~95A in the form of auxiliary contacts, 115A~800A in the form of poles Design code
10 represents three normally open main contacts and one normally open auxiliary contact (32A and below);
01 represents three normally open main contacts and one normally closed auxiliary contact (32A and below); 交流接触器 AC contactor
11 represents three normally open main contacts, one normally open and one normally closed auxiliary contacts (40A and above);
40 represents the four-normally open main contact; 08 means two normally open and two normally closed main contacts.
