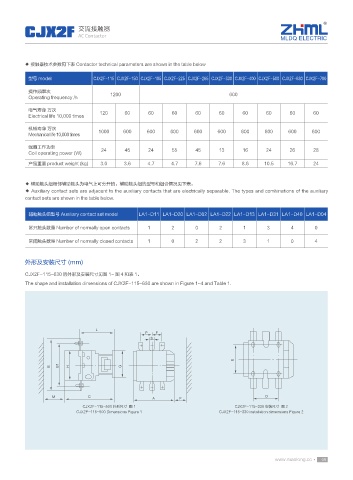

CJX2F 交流接触器
AC Contactor
MLDQ ELECTRIC

◆ 接触器技术参数见下表 Contactor technical parameters are shown in the table below

型号 model CJX2F-115 CJX2F-150 CJX2F-185 CJX2F-225 CJX2F-265 CJX2F-330 CJX2F-400 CJX2F-500 CJX2F-630 CJX2F-780

操作频率次 1200 600
Operating frequency /h

电气寿命 万次 120 60 60 60 60 60 60 60 60 60
Electrical life 10,000 times
机械寿命 万次 1000 600 600 600 600 600 600 600 600 600
Mechanical life 10,000 times
线圈工作功率 24 45 24 55 45 13 16 24 26 28
Coil operating power (W)
产品重量 product weight (kg) 3.6 3.6 4.7 4.7 7.6 7.6 8.6 10.5 16.7 24

◆ 辅助触头组相邻辅助触头为电气上可分开的。辅助触头组的型号和组合情况见下表。
◆ Auxiliary contact sets are adjacent to the auxiliary contacts that are electrically separable. The types and combinations of the auxiliary
contact sets are shown in the table below.

辅助触头组型号 Auxiliary contact set model LA1-D11 LA1-D20 LA1-D02 LA1-D22 LA1-D13 LA1-D31 LA1-D40 LA1-D04

常开触头数量 Number of normally open contacts 1 2 0 2 1 3 4 0

常闭触头数量 Number of normally closed contacts 1 0 2 2 3 1 0 4

外形及安装尺寸 (mm)

CJX2F-115~630 的外形及安装尺寸见图 1~ 图 4 和表 1。
The shape and installation dimensions of CJX2F-115~630 are shown in Figure 1~4 and Table 1.

L
P P
S

E
B B1 H G

M C A F D
CJX2F-115~500 外形尺寸 图 1 CJX2F-115~330 安装尺寸 图 2
CJX2F-115~500 Dimensions Figure 1 CJX2F-115~330 installation dimensions Figure 2
