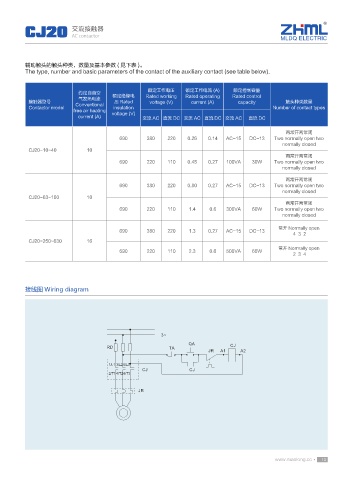

CJ20 交流接触器
AC contactor
MLDQ ELECTRIC

辅助触头的触头种类，数量及基本参数 ( 见下表 )。
The type, number and basic parameters of the contact of the auxiliary contact (see table below).

额定工作电压 额定工作电流 (A) 额定控制容量
约定自由空 额定绝缘电
气发热电流 Rated working Rated operating Rated control
接触器型号 Conventional 压 Rated voltage (V) current (A) capacity 触头种类数量
Contactor model insulation Number of contact types
free air heating voltage (V)
current (A) 交流 AC 直流 DC 交流 AC 直流 DC 交流 AC 直流 DC

两常开两常闭
690 380 220 0.26 0.14 AC-15 DC-13 Two normally open two
normally closed
CJ20-10~40 10
两常开两常闭
690 220 110 0.45 0.27 100VA 30W Two normally open two
normally closed
两常开两常闭
690 380 220 0.80 0.27 AC-15 DC-13 Two normally open two
normally closed
CJ20-63~160 10
两常开两常闭
690 220 110 1.4 0.6 300VA 60W Two normally open two
normally closed

常开 Normally open
690 380 220 1.3 0.27 AC-15 DC-13
4 3 2
CJ20-250~630 16
常开 Normally open
690 220 110 2.3 0.6 500VA 60W
2 3 4

接线图 Wiring diagram

a
4$
5' 7$ &-
-5 $ $
/ / /
&- &-
7 7 7

-5
