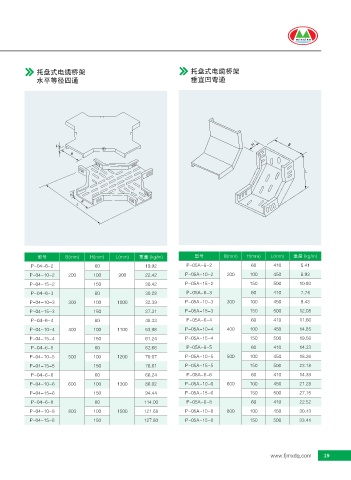

托盘式电缆桥架 托盘式电缆桥架
水平等径四通 垂直凹弯通

J J D
D

N

J
D
N

型号 B(mm) H(mm) L(mm) 重量 (kg/m) 型号 B(mm) H(mm) L(mm) 重量 (kg/m)
P-04-6-2 60 19.92 P-05A-6-2 60 410 5.41
P-04-10-2 200 100 900 22.42 P-05A-10-2 200 100 450 6.93
P-04-15-2 150 30.42 P-05A-15-2 150 500 10.93
P-04-6-3 60 30.28 P-05A-6-3 60 410 7.74
P-04-10-3 300 100 1000 32.39 P-05A-10-3 300 100 450 9.43
P-04-15-3 150 37.31 P-05A-15-3 150 500 12.08
P-04-6-4 60 48.33 P-05A-6-4 60 410 11.66
P-04-10-4 400 100 1100 53.98 P-05A-10-4 400 100 450 14.85
P-04-15-4 150 61.24 P-05A-15-4 150 500 19.56
P-04-6-5 60 62.66 P-05A-6-5 60 410 14.33
P-04-10-5 500 100 1200 70.07 P-05A-10-5 500 100 450 18.26
P-04-15-5 150 76.61 P-05A-15-5 150 500 23.18
P-04-6-6 60 66.24 P-05A-6-6 60 410 14.39
P-04-10-6 600 100 1300 86.02 P-05A-10-6 600 100 450 21.28
P-04-15-6 150 94.44 P-05A-15-6 150 500 27.15
P-04-6-8 60 114.00 P-05A-6-8 60 410 22.52
P-04-10-8 800 100 1500 121.68 P-05A-10-8 800 100 450 30.43
P-04-15-8 150 127.80 P-05A-15-8 150 500 33.41
