Page 22 - 福建闽先电器有限公司

福建闽先电器有限公司
Fujian MinXian Electrical Appliance Co., Ltd.

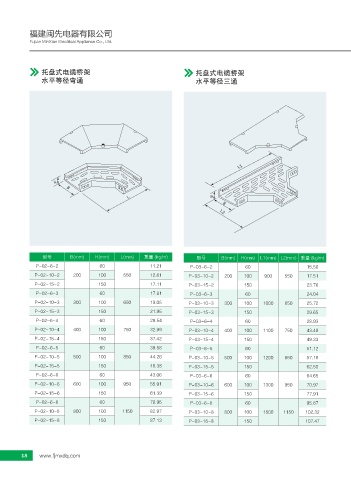

托盘式电缆桥架 托盘式电缆桥架
水平等径弯通 水平等径三通

N3

J
D
N J
D
N4

型号 B(mm) H(mm) L(mm) 重量 (kg/m) 型号 B(mm) H(mm) L1(mm) L2(mm) 重量 (kg/m)
P-02-6-2 60 11.21 P-03-6-2 60 15.56
P-02-10-2 200 100 550 12.61 P-03-10-2 200 100 900 550 17.51
P-02-15-2 150 17.11 P-03-15-2 150 23.76
P-02-6-3 60 17.81 P-03-6-3 60 24.04
P-02-10-3 300 100 650 19.05 P-03-10-3 300 100 1000 650 25.72
P-02-15-3 150 21.95 P-03-15-3 150 29.65
P-02-6-4 60 29.54 P-03-6-4 60 28.93
P-02-10-4 400 100 750 32.99 P-03-10-4 400 100 1100 750 43.49
P-02-15-4 150 37.42 P-03-15-4 150 49.33
P-02-6-5 60 39.58 P-03-6-5 60 51.12
P-02-10-5 500 100 850 44.26 P-03-10-5 500 100 1200 850 57.16
P-02-15-5 150 48.38 P-03-15-5 150 62.50
P-02-6-6 60 43.06 P-03-6-6 60 64.65
P-02-10-6 600 100 950 55.91 P-03-10-6 600 100 1300 950 70.97
P-02-15-6 150 61.39 P-03-15-6 150 77.91
P-02-6-8 60 76.95 P-03-6-8 60 95.87
P-02-10-8 800 100 1150 82.97 P-03-10-8 800 100 1500 1150 102.32
P-02-15-8 150 87.13 P-03-15-8 150 107.47

18 www.fjmxdq.com
