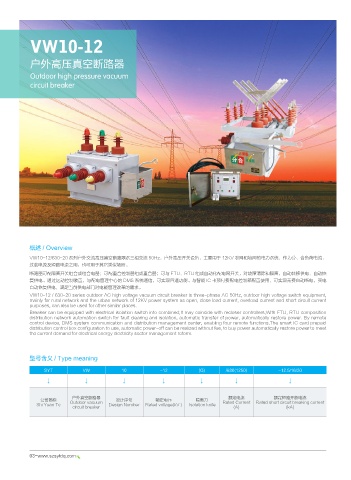

P. 10
VW10-12
户外高压真空断路器
Outdoor high pressure vacuum
circuit breaker
概述 / Overview
VW10-12/630-20 系列户外交流高压真空断路器系三相交流 50Hz，户外高压开关设备，主要用于 12KV 农网和城网的电力系统，作为分、合负荷电流、
过载电流及短路电流之用，也可用于其它类似场所。
断路器可配隔离开关组合成组合电器；可配重合控制器组成重合器；可与 FTU、RTU 组成自动化配电网开关，对故障清除和隔离，自动转移供电、自动恢
复供电。通过远动控制装置，与配电管理中心的 DMS 系统通信，可实现四遥功能。与智能 IC 卡预付费配电控制箱配置使用，可实现无费自动断电，买电
自动恢复供电，满足当前供电部门对电能管理改革的需求。
VW10-12 / 630-20 series outdoor AC high voltage vacuum circuit breaker is three-phase AC 50Hz, outdoor high voltage switch equipment,
mainly for rural network and the urban network of 12KV power system as open, close load current, overload current and short circuit current
purposes, can also be used for other similar places.
Breaker can be equipped with electrical isolation switch into combined;It may coincide with recloser controllers;With FTU, RTU composition
distribution network automation switch for fault clearing and isolation, automatic transfer of power, automatically restore power. By remote
control device, DMS system communication and distribution management center, enabling four remote functions.The smart IC card prepaid
distribution control box configuration to use, automatic power-off can be realized without fee, to buy power automatically restore power to meet
the current demand for electrical energy electricity sector management reform.
型号含义 / Type meaning
SYT VW 10 -12 (G) /630(1250) -12.5/16/20
↓ ↓ ↓ ↓ ↓ ↓ ↓
户外真空断路器 额定电流 额定短路开断电流
公司简称 设计序号 额定电压 隔离刀
Shi Yuan Te Outdoor vacuum Design Number Rated voltage(kV ) Isolation knife Rated Current Rated short circuit breaking current
circuit breaker (A) (kA)
