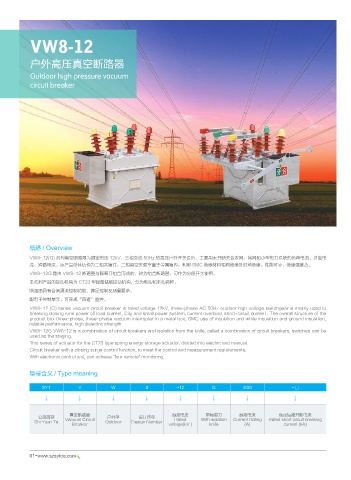

P. 8
VW8-12
户外高压真空断路器
Outdoor high pressure vacuum
circuit breaker
概述 / Overview
VW8-12(G) 系列真空断路器为额定电压 12kV，三相交流 50Hz 的高压户外开关设备，主要用来开断关合农网、城网和小型电力系统的负荷电流、过载电
流、短路电流。该产品总体结构为三相共箱式，三相真空灭弧室置于金属箱内，利用 SMC 绝缘材料相间绝缘及对地绝缘，性能可靠，绝缘强度高。
VW8-12G 是由 VW8-12 断路器与隔离刀组合而成的，称为组合断路器，可作为分段开关使用。
本系列产品的操动机构为 CT23 型弹簧储能操动机构，分为电动和手动两种。
断路器具有合闸涌流控制功能，满足控制及测量要求。
配电子控制单元，可实现“四遥”监控。
VW8-12 (G) series vacuum circuit breaker is rated voltage 12kV, three-phase AC 50Hz outdoor high voltage switchgear is mainly used to
breaking closing rural power off load current, City and small power system, current overload, short-circuit current . The overall structure of the
product box three-phase, three-phase vacuum interrupter in a metal box, SMC use of insulation and white insulation and ground insulation,
reliable performance, high dielectric strength.
VW8-12G VW8-12 is a combination of circuit breakers and isolation from the knife, called a combination of circuit breakers, switches can be
used as the staging.
This series of actuator for the CT23 type spring energy storage actuator, divided into electric and manual.
Circuit breaker with a closing surge control function, to meet the control and measurement requirements.
With electronic control unit, can achieve "four remote" monitoring.
型号含义 / Type meaning
SYT V W 8 -12 G /630 -□
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
真空断路器 额定电压 带隔离刀 额定电流 额定短路开断电流
公司简称 户外型 设计序号
Shi Yuan Te Vacuum Circuit Outdoor Design Number Rated With isolation Current Rating Rated short circuit breaking
Breaker voltage(kV ) knife (A) current (kA)
