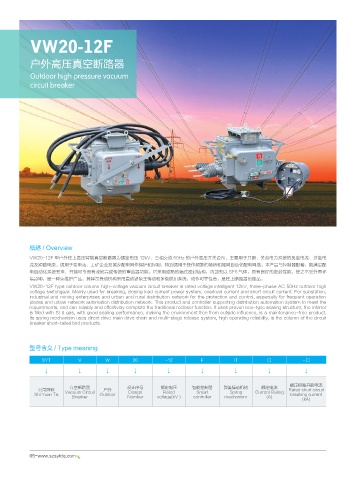

P. 12
VW20-12F
户外高压真空断路器
Outdoor high pressure vacuum
circuit breaker
概述 / Overview
VW20-12F 型户外柱上高压智能真空断路器为额定电压 12kV、三相交流 50Hz 的户外高压开关设备。主要用于开断、关合电力系统的负载电流、过载电
流及短路电流。适用于变电站、工矿企业及城乡配电网作保护和控制，特别适用于操作频繁的场所和城网自动化配电网络。本产品与控制器配套，能满足配
电自动化系统要求，并能可靠而有效地完成传统的重合器功能。它采用成熟的箱式密封结构，内部充以 SF6 气体，具有良好的密封性能，使之不受外界环
境影响，是一种免维护产品。其弹簧操动机构采用直动链条主传动和多级脱扣系统，动作可靠性高，是柱上断路器的隹品。
VW20-12F type outdoor column high-voltage vacuum circuit breaker is rated voltage intelligent 12kV, three-phase AC 50Hz outdoor high
voltage switchgear. Mainly used for breaking, closing load current power system, overload current and short circuit current. For substation,
industrial and mining enterprises and urban and rural distribution network for the protection and control, especially for frequent operation
places and urban network automation distribution network. This product and controller supporting distribution automation system to meet the
requirements, and can reliably and effectively complete the traditional recloser function. It uses proven box-type sealing structure, the interior
is filled with SF6 gas, with good sealing performance, making the environment free from outside influence, is a maintenance-free product.
Its spring mechanism uses direct drive main drive chain and multi-stage release system, high operating reliability, is the column of the circuit
breaker short-tailed bird products.
型号含义 / Type meaning
SYT V W 20 -12 F /T □ -□
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
额定短路开断电流
真空断路器 设计序号 额定电压 智能控制器 弹簧操动机构 额定电流
公司简称 户外 Rated short circuit
Shi Yuan Te Vacuum Circuit Outdoor Design Rated Smart Spring Current Rating breaking current
Breaker Number voltage(kV ) controller mechanism (A)
(kA)
