FVW32-12/T630-20 户外高压隔离真空负荷开关
FVW32-12/T630-20 outdoor high voltage isolating vacuum load switch

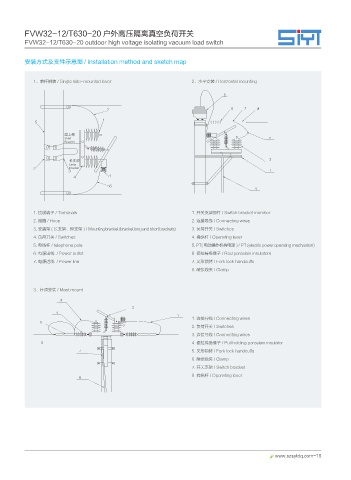

安装方式及支件示意图 / Installation method and sketch map

1、单杆侧装 / Single side-mounted lever 2、水平安装 / Horizontal mounting

ⴙᩛ᳢
4IPSU
#SBDLFU

䪫ᩛ᳢
-POH
CSBDLFU

1. 接线端子 / Terminals 1. 开关支架部件 / Switch bracket member
2. 抱箍 / Hoop 2. 连接导线 / Connecting wires
3. 安装架 ( 长支架、短支架 ) / Mounting bracket (bracket long and short brackets) 3. 负荷开关 / Switches
4. 负荷开关 / Switches 4. 操纵杆 / Operating lever
5. 电线杆 / telephone pole 5. PT( 电动操作机构电源 ) / PT (electric power operating mechanism)
6. 电源出线 / Power outlet 6. 瓷拉棒绝缘子 / Rod porcelain insulators
7. 电源进线 / Power line 7. 叉形锁铐 / Fork lock handcuffs
8. 耐张线夹 / Clamp

3、杆顶安装 / Mast mount

1. 连接导线 / Connecting wires

2. 负荷开关 / Switches
3. 连接导线 / Connecting wires
4. 瓷拉捧绝缘子 / Pull holding porcelain insulator
5. 叉形锁铐 / Fork lock handcuffs
6. 耐张线夹 / Clamp
7. 开关支架 / Switch bracket
8. 操纵杆 / Operating lever
