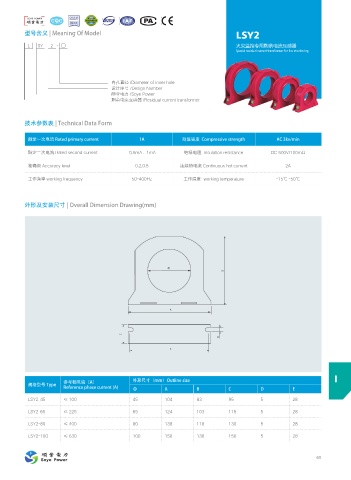

Page 65 - 浙江硕业电力科技有限公司

型号含义
型号含义 | Meaning Of Model| Meaning Of Model LSY2
L SY 2 - □ 火灾监控专用剩余电流互感器
Special residual current transformer for fire monitoring

内孔直径 /Diameter of inner hole
设计序号 /Design Number
硕业电力 /Soye Power
剩余电流互感器 /Residual current transformer

技术参数表 | Technical Data Form

额定一次电流 Rated primary current 1A 耐压强度 Compressive strength AC 3kv/min

额定二次电流 Rated second current 0.5mA．1mA 绝缘电阻 insulation resistance DC 500V/100mΩ

准确级 Accuracy level 0.2,0.5 连续热电流 Continuous hot current 2A

工作频率 working frequency 50-400Hz 工作温度 working temperature -15℃ -50℃

外形及安装尺寸 | Overall Dimension Drawing(mm)

Í
#

"

&
%
$

I
参考相电流（A） 外形尺寸（mm）Outline size
规格型号 Type
Reference phase current (A) Φ A B C D E
LSY2-45 ≤ 100 45 104 83 95 5 28

LSY2-65 ≤ 225 65 124 103 115 5 28
LSY2-80 ≤ 400 80 138 118 130 5 28

LSY2-100 ≤ 630 100 158 138 150 5 28

60
