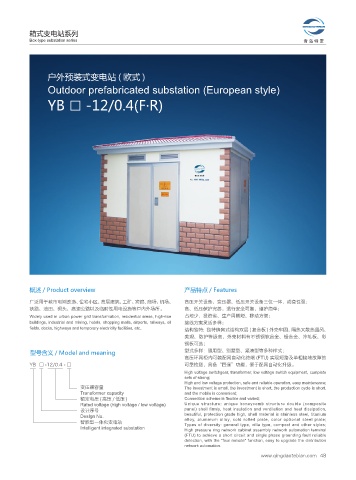

Page 59 - 青岛特变电工有限公司

箱式变电站系列
Box-type substation series 青 岛 特 变

户外预装式变电站 ( 欧式 )

Outdoor prefabricated substation (European style)

YB □ -12/0.4(F·R)

概述 / Product overview 产品特点 / Features

广泛用于城市电网改造、住宅小区、高层建筑、工矿、宾馆、商场、机场、 高压开关设备、变压器、低压开关设备三位一体，成套性强；
铁路、油田、码头、高速公路以及临时性用电设施等户内外场所。 高、低压保护完善，运行安全可靠，维护简单；
Widely used in urban power grid transformation, residential areas, high-rise 占地少，投资省、生产周期短、移动方便；
buildings, industrial and mining, hotels, shopping malls, airports, railways, oil 接线方案灵活多样；
fields, docks, highways and temporary electricity facilities, etc.. 结构独特：独特蜂窝式结构双层 ( 复合板 ) 外壳牢固，隔热又散热通风、
美观、防护等级高，外壳材料有不锈钢钦合金、铝合金、冷轧板、彩
钢板可选；
型号含义 / Model and meaning 型式多样：通用型、别墅型、紧凑型等多种样式；
高压环网柜内可装配网自动化终端 (FTU) 实现短路及单相接地故障的
YB □ -12/0.4 - □ 可靠检测，具备“四遥”功能，便于配网自动化升级。
High voltage switchgear, transformer, low voltage switch equipment, complete
sets of strong;
High and low voltage protection, safe and reliable operation, easy maintenance;
变压器容量 The investment is small, the investment is short, the production cycle is short,
Transformer capacity and the mobile is convenient;
额定电压 ( 高压 / 低压 ) Connection scheme is flexible and varied;
Rated voltage (high voltage / low voltage) Unique structure: unique honeycomb structure double (composite
设计序号 panel) shell firmly, heat insulation and ventilation and heat dissipation,
DesIgn No. beautiful, protection grade high, shell material is stainless steel, titanium
智能型一体化变电站 alloy, aluminum alloy, cold rolled plate, color optional steel plate;
Types of diversity: general type, villa type, compact and other styles;
Intelligent integrated substation High pressure ring network cabinet assembly network automation terminal
(FTU) to achieve a short circuit and single phase grounding fault reliable
detection, with the "four remote" function, easy to upgrade the distribution
network automation.
