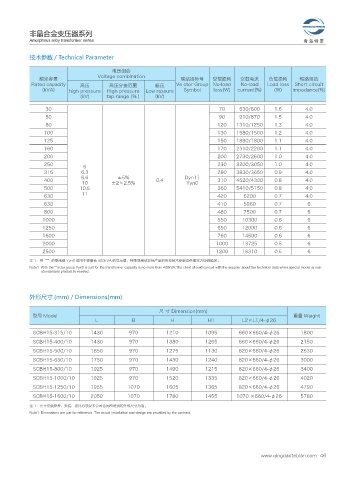

非晶合金变压器系列
Amorphous alloy transformer series 青 岛 特 变

技术参数 / Technical Parameter

电压组合
Voltage combination
额定容量 联结组标号 空载损耗 空载电流 负载损耗 短路阻抗
Rated capacity 高压 高压分接范围 低压 Ve ctor Group No-load No-load Load loss Short circuit
(kVA) high pressure High pressure Low ressure Symbol loss(W) current(%) (W) impedance(%)
(kV) tap range (％ ) (kV)

30 70 630/600 1.6 4.0
50 90 910/870 1.5 4.0
80 120 1310/1250 1.3 4.0
100 130 1580/1500 1.2 4.0
125 150 1890/1800 1.1 4.0
160 170 2310/2200 1.1 4.0
200 200 2730/2600 1.0 4.0
250 6 230 3200/3050 1.0 4.0
315 6.3 280 3830/3650 0.9 4.0
6.6 ±5% Dyn11
400 10 ±2×2.5% 0.4 Yyn0 310 4520/4300 0.8 4.0
500 10.5 360 5410/5150 0.8 4.0
630 11 420 6200 0.7 4.0
630 410 5960 0.7 6
800 480 7500 0.7 6
1000 550 10300 0.6 6
1250 650 12000 0.6 6
1600 760 14500 0.6 6
2000 1000 13725 0.5 6
2500 1200 16310 0.5 6

注 1：带“*”的联结组 Yyn0 适用于容量备 400kVA 的变压器；特殊规格或非标产品的各项技术参数由供需双方协商确定。
Note1: With the“*”ector group Yyn0 is suit for the transformer capacity is no more than 400kVA;The client should consult with the supplier about the technical data when special model or non-
standardard product is needed.

外形尺寸 (mm) / Dimensions(mm)

尺 寸 Dimension(mm)
型号 Model 重量 Weight
L B H H1 L2×L1/4-φ26

SCBH15-315/10 1430 970 1210 1095 660×660/4-φ26 1800
SCBH15-400/10 1430 970 1380 1265 660×660/4-φ26 2150
SCBH15-500/10 1650 970 1275 1130 820×660/4-φ26 2530
SCBH15-630/10 1730 970 1430 1240 820×660/4-φ26 3000
SCBH15-800/10 1925 970 1490 1215 820×660/4-φ26 3400
SCBH15-1000/10 1925 970 1520 1335 820×660/4-φ26 4020
SCBH15-1250/10 1955 1070 1605 1365 820×660/4-φ26 4790
SCBH15-1600/10 2050 1070 1780 1455 1070 ×660/4-φ26 5780

注 1：尺寸仅供参考，安装、设计必须以本公司合同所提供的外形尺寸为准。
Note1: Dimensions are just for reference. The actual installation and design are provided by the contract.
