低压开关柜系列
Low-Voltage Switchgear Series

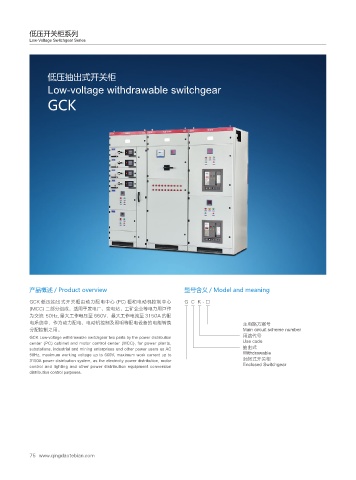

低压抽出式开关柜
Low-voltage withdrawable switchgear
GCK
产品概述 / Product overview 型号含义 / Model and meaning
GCK 低压抽出式开关柜由动力配电中心 (PC) 柜和电动机控制中心 G C K - □
(MCC) 二部分组成，适用于发电厂、变电站，工矿企业等电力用户作
为交流 50Hz, 最大工作电压至 660V，最大工作电流至 3150A 的配
电系统中，作为动力配电，电动机控制及照明等配电设备的电能转换 主电路方案号
分配控制之用。 Main circuit scheme number
GCK Low-voltage withdrawable switchgear two parts by the power distribution 用途代号
center (PC) cabinet and motor control center (MCC), for power plants, Use code
substations, industrial and mining enterprises and other power users as AC 抽出式
50Hz, maximum working voltage up to 660V, maximum work current up to Withdrawable
3150A power distribution system, as the electricity power distribution, motor 封闭式开关柜
control and lighting and other power distribution equipment conversion Enclosed Switchgear
distribution control purposes.
