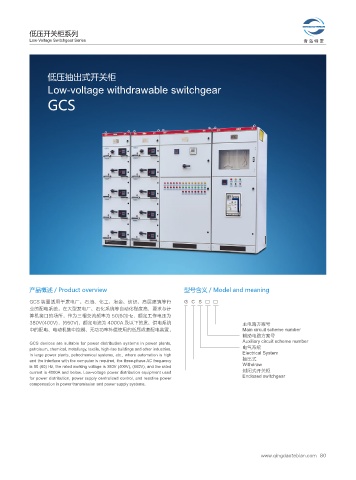

低压开关柜系列
           Low-Voltage Switchgear Series                                                                 青 岛 特 变





                 低压抽出式开关柜

                 Low-voltage withdrawable switchgear

                 GCS






































           产品概述 / Product overview                              型号含义 / Model and meaning

           GCS 装置适用于发电厂、石油、化工、冶金、纺织、高层建筑等行                      G   C   S   □   □
           业的配电系统。在大型发电厂、石化系统等自动化程度高,要求与计
           算机接口的场所,作为三相交流频率为 50(60)Hz,额定工作电压为
           380V(400V),(660V),额定电流为 4000A 及以下的发、供电系统                                 主电路方案号
           中的配电、电动机集中控制、无功功率补偿使用的低压成套配电装置。                                          Main circuit scheme number
                                                                                    辅助电路方案号
           GCS devices are suitable for power distribution systems in power plants,   Auxiliary circuit scheme number
           petroleum, chemical, metallurgy, textile, high-rise buildings and other industries.   电气系统
           In large power plants, petrochemical systems, etc., where automation is high   Electrical System
           and the interface with the computer is required, the three-phase AC frequency   抽出式
           is 50 (60) Hz, the rated working voltage is 380V (400V), (660V), and the rated   Withdraw
           current is 4000A and below. Low-voltage power distribution equipment used   封闭式开关柜
           for power distribution, power supply centralized control, and reactive power   Enclosed switchgear
           compensation in power transmission and power supply systems.
