低压开关柜系列
Low-Voltage Switchgear Series

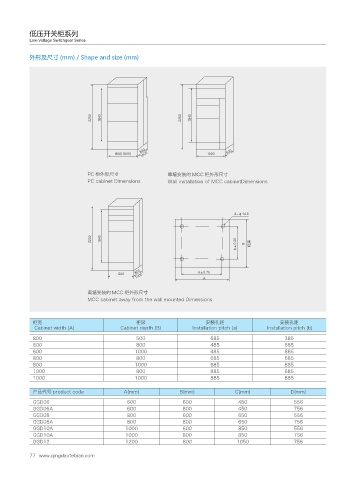

外形及尺寸 (mm) / Shape and size (mm)
PC 柜外形尺寸 靠墙安装的 MCC 柜外形尺寸
PC cabinet Dimensions Wall installation of MCC cabinetDimensions
·
Cd # ᴈ⌝
Bd
"
离墙安装的 MCC 柜外形尺寸
MCC cabinet away from the wall mounted Dimensions
柜宽 柜深 安装孔距 安装孔距
Cabinet width (A) Cabinet depth (B) Installation pitch (a) Installation pitch (b)
800 500 685 385
600 800 485 685
600 1000 485 885
800 800 685 685
800 1000 685 885
1000 800 885 685
1000 1000 885 885
产品代号 product code A(mm) B(mm) C(mm) D(mm)
GGD06 600 600 450 556
GGD06A 600 800 450 756
GGD08 800 600 650 556
GGD08A 800 800 650 756
GGD10A 1000 600 850 556
GGD10A 1000 800 850 756
GGD12 1200 800 1050 756
