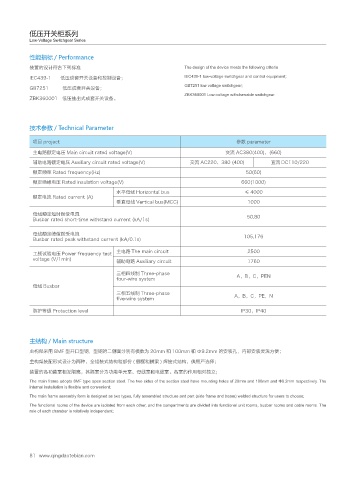

低压开关柜系列
Low-Voltage Switchgear Series

性能指标 / Performance
装置的设计符合下列标准 The design of the device meets the following criteria
IEC439-1 低压成套开关设备和控制设备； IEC439-1 low-voltage switchgear and control equipment;
GB7251 low voltage switchgear;
GB7251 低压成套开关设备；
ZBK360001 Low-voltage withdrawable switchgear.
ZBK360001 低压抽出式成套开关设备。

技术参数 / Technical Parameter

项目 project 参数 parameter
主电路额定电压 Main circuit rated voltage(V) 交流 AC380(400)、(660)
辅助电路额定电压 Auxiliary circuit rated voltage(V) 交流 AC220、380 (400) 直流 DC110/220
额定频率 Rated frequency(Hz) 50(60)
额定绝缘电压 Rated insulation voltage(V) 660(1000)

水平母线 Horizontal bus ≤ 4000
额定电流 Rated current (A)
垂直母线 Vertical bus(MCC) 1000
母线额定短时耐受电流
Busbar rated short-time withstand current (kA/1s) 50,80

母线额定峰值耐受电流
Busbar rated peak withstand current (kA/0.1s) 105,176

工频试验电压 Power frequency test 主电路 The main circuit 2500
voltage (V/1min) 辅助电路 Auxiliary circuit 1760

三相四线制 Three-phase
four-wire system A，B，C，PEN
母线 Busbar
三相五线制 Three-phase
five-wire system A，B，C，PE，N
防护等级 Protection level IP30，IP40

主结构 / Main structure

主构架采用 8MF 型开口型钢，型钢的二侧面分别有模数为 20mm 和 100mm 和 Φ9.2mm 的安装孔，内部安装灵活方便；
主构架装配形式设计为两种，全组装式结构和部份 ( 侧框和横梁 ) 焊接式结构，供用户选择；
装置的各功能室相互隔离，其隔室分为功能单元室、母线室和电缆室。各室的作用相对独立；
The main frame adopts 8MF type open section steel. The two sides of the section steel have mounting holes of 20mm and 100mm and Φ9.2mm respectively. The
internal installation is flexible and convenient;
The main frame assembly form is designed as two types, fully assembled structure and part (side frame and beam) welded structure for users to choose;
The functional rooms of the device are isolated from each other, and the compartments are divided into functional unit rooms, busbar rooms and cable rooms. The
role of each chamber is relatively independent;
