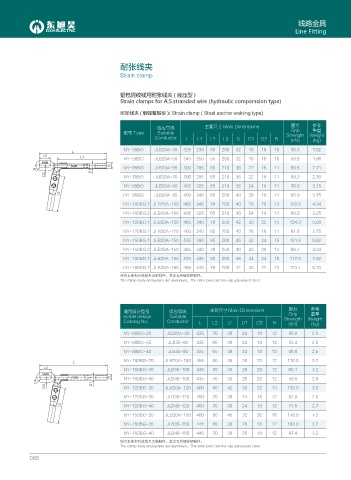

线路金具
Line Fitting
耐张线夹
Strain clamp
铝包钢绞线用耐张线夹 ( 液压型 )
Strain clamps for A.S.stranded wire (hydraulic comperssion type)
耐张线夹 ( 钢锚整锻型 )/ Strain clamp ( Steel anchor welding type)
适应导线 主要尺寸 Main Dimensions 握力 参考
Grip
重量
型号 Type Suitable Strength Weight
Conductor L L1 L2 L3 D D1 D2 R (kN) (kg)
NY-35BG JLB20A-35 325 230 55 200 32 18 16 10 35.3 1.92
.
.
. NY-50BG JLB20A-50 345 250 55 200 32 18 16 10 50.8 1.96
ףഗތ
&
ףഗތ
4 & NY-65BG JLB20A-65 390 285 65 210 36 22 18 11 65.5 2.71
& NY-70BG JLB20A-70 390 285 65 210 36 22 18 11 69.3 2.76
NY-80BG JLB20A-80 435 325 65 210 36 24 18 11 76.0 3.15
. NY-95BG JLB20A-95 450 340 65 250 40 26 18 11 85.9 3.75
NY-100BG.1 JLB20A-100 465 340 78 250 40 28 20 13 103.5 4.34
NY-100BG.2 JLB30A-100 435 325 65 210 36 24 18 11 68.0 3.25
NY-120BG.1 JLB20A-120 465 340 78 250 42 30 22 13 124.3 5.00
NY-120BG.2 JLB30A-120 450 340 65 250 40 26 18 11 81.6 3.75
NY-150BG.1 JLB20A-150 535 390 85 260 45 32 24 15 151.8 6.62
NY-150BG.2 JLB30A-150 465 340 78 250 40 28 20 13 99.7 4.34
NY-185BG.1 JLB20A-185 575 435 85 260 48 34 24 15 117.6 7.92
NY-185BG.2 JLB30A-185 465 340 78 250 42 30 22 13 123.1 5.10
线夹本体和引流线夹为铝制件，其余为热镀锌钢制件。
The clamp body and jumper are aluminium，The other parts are hot-dip galvanized steel.
通用设计型号 适应导线 主要尺寸 Main Dimensions 握力 参考
重量
Grip
stable desiqn Suitable
Catalog No. Conductor L L2 D D1 D2 R Strength Weight
(kg)
(kN)
NY-80BG-20 JLB20A-80 435 70 36 24 18 12 85.0 2.5
NY-80BG-35 JLB35-80 435 65 36 24 18 12 53.4 2.5
NY-80BG-40 JLB40-80 435 65 36 24 18 12 46.6 2.5
. NY-100BG-20 JLB20A-100 455 80 38 26 20 12 116.0 3.7
.
NY-100BG-35 JLB35-100 435 70 38 26 20 12 68.1 3.2
ףഗތ
ףഗތ & NY-100BG-40 JLB40-100 435 70 38 26 20 12 59.6 2.9
4
& & NY-120BG-20 JLB20A-120 490 80 42 30 22 13 139.0 3.8
NY-120BG-35 JLB35-120 450 70 36 24 18 12 81.9 2.5
. NY-120BG-40 JLB40-120 450 70 36 24 18 12 71.5 2.7
NY-150BG-20 JLB20A-150 460 80 45 32 26 16 170.0 7.3
NY-150BG-35 JLB35-150 445 80 38 26 18 12 100.0 3.2
NY-150BG-40 JLB40-150 445 70 38 26 18 12 87.4 3.2
线夹本体和引流线夹为铝制件，其余为热镀锌钢制件。
The clamp body and jumper are aluminium，The other parts are hot-dip galvanized steel.
