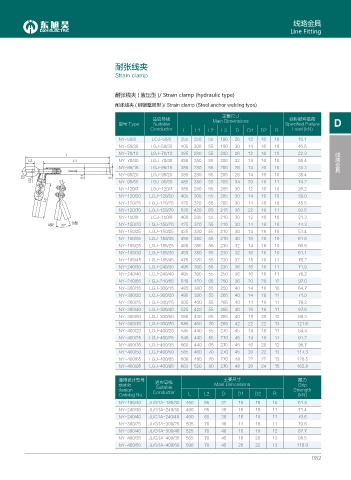

线路金具
Line Fitting
耐张线夹
Strain clamp
耐张线夹 ( 液压型 )/ Strain clamp (hydraulic type)
耐张线夹 ( 钢锚整锻型 )/ Strain clamp (Steel anchor welding type)
主要尺寸
适应导线 Main Dimensions 标称破坏载荷
型号 Type Suitable Specified Failure D
Conductor L L1 L2 L3 D D1 D2 R Load (kN)
NY-50/8 LGJ-50/8 355 250 55 190 26 12 16 10 16.1
NY-50/30 LGJ-50/30 405 300 55 190 30 14 16 10 40.5
线路金具
. NY-70/10 LGJ-70/10 385 280 55 200 26 12 16 10 22.3
. . NY-70/40 LGJ-70/40 455 350 55 200 32 18 16 10 55.4
NY-95/15 LGJ-95/15 385 280 55 205 26 14 16 10 33.3
NY-95/20 LGJ-95/20 385 280 55 205 26 14 16 10 35.4
4 & &
& NY-95/55 LGJ-95/55 485 380 55 205 34 20 18 11 74.2
NY-120/7 LGJ-120/7 385 280 55 205 30 12 16 10 26.2
NY-120/20 LGJ-120/20 405 300 55 205 30 14 16 10 39.0
. NY-120/25 LGJ-120/25 425 320 55 205 30 14 16 10 45.5
NY-120/70 LGJ-120/70 535 420 65 215 36 22 18 11 93.5
NY-150/8 LGJ-150/8 400 295 55 210 30 12 16 10 31.3
$ތ
#ތ d NY-150/20 LGJ-150/20 425 320 55 210 30 14 16 10 44.3
NY-150/25 LGJ-150/25 435 330 55 210 30 14 16 10 51.4
NY-150/35 LGJ-150/35 455 350 55 210 30 16 16 10 61.8
NY-185/25 LGJ-185/25 455 350 55 230 32 14 16 10 56.5
NY-185/30 LGJ-185/30 455 350 55 230 32 16 16 10 61.1
NY-185/45 LGJ-185/45 475 370 55 230 32 18 18 11 76.2
NY-240/30 LGJ-240/30 495 390 55 230 36 16 18 11 71.9
NY-240/40 LGJ-240/40 495 390 55 250 36 16 18 11 79.2
NY-240/55 LGJ-240/55 540 420 65 250 36 20 20 12 97.0
NY-300/15 LGJ-300/15 485 380 55 250 40 14 16 10 64.7
NY-300/20 LGJ-300/20 495 390 55 265 40 14 18 11 71.9
NY-300/25 LGJ-300/25 505 400 55 265 40 14 18 11 79.3
NY-300/40 LGJ-300/40 525 420 55 265 40 16 18 11 87.6
NY-300/50 LGJ-300/50 550 430 65 265 40 18 20 12 98.3
NY-300/70 LGJ-300/70 585 460 70 265 42 22 22 13 121.6
NY-400/20 LGJ-400/20 545 440 55 270 45 14 18 11 84.4
NY-400/25 LGJ-400/25 545 440 55 270 45 14 18 11 91.2
NY-400/35 LGJ-400/35 560 440 65 270 45 16 20 12 98.7
NY-400/50 LGJ-400/50 585 460 70 270 45 20 22 13 117.3
NY-400/65 LGJ-400/65 608 480 70 270 48 22 22 13 128.5
NY-400/95 LGJ-400/95 663 520 80 270 48 26 24 15 162.8
通用设计型号 主要尺寸 握力
stable 适应导线 Main Dimensions Grip
Suitable
desiqn Strength
Catalog No. Conductor L L2 D D1 D2 R (kN)
NY-185/30 JL/G1A-185/30 450 65 32 16 16 10 61.3
NY-240/30 JL/G1A-240/30 490 65 36 16 18 11 71.4
NY-240/40 JUG1A-240/40 490 65 36 16 18 11 79.6
NY-300/25 JL/G1A-300/25 505 70 40 14 18 11 79.6
NY-300/40 JL/G1A-300/40 525 70 40 16 18 12 87.7
NY-400/35 JL/G1A-400/35 565 78 45 16 20 13 98.5
NY-400/50 JL/G1A-400/50 590 78 45 20 22 13 116.9
