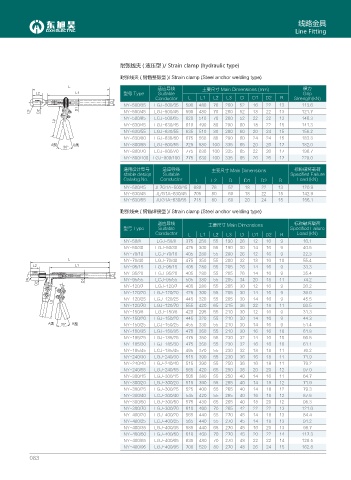

P. 102
线路金具
Line Fitting
耐张线夹 ( 液压型 )/ Strain clamp (hydraulic type)
耐张线夹 ( 钢锚整锻型 )/ Strain clamp (Steel anchor welding type)
.
适应导线 主要尺寸 Main Dimensions (mm) 握力
. . 型号 Type Suitable Grip
Conductor L L1 L2 L3 D D1 D2 R Strength(kN)
ףഗތ
ףഗތ &
NY-500/35 LGJ-500/35 590 480 70 260 52 16 22 13 113.6
&
4 & NY-500/45 LGJ-500/45 590 480 70 260 52 18 22 13 121.7
NY-500/65 LGJ-500/65 620 510 70 260 52 22 22 13 146.3
.
NY-630/45 LGJ-630/45 610 490 80 290 60 18 22 15 141.3
NY-630/55 LGJ-630/55 635 510 80 290 60 20 24 15 156.2
NY-630/80 LGJ-630/80 675 550 80 290 60 24 24 15 183.3
#ތ $ތ NY-800/55 LGJ-800/55 725 580 100 335 65 20 26 17 182.0
d
NY-800/70 LGJ-800/70 775 630 100 335 65 22 26 17 196.7
NY-800/100 LGJ-800/100 775 630 100 335 65 26 26 17 229.0
通用设计型号 适应导线 主要尺寸 Main Dimensions 标称破坏载荷
stable desiqn Suitable Specified Failure
Catalog No. Conductor L L2 D D1 D2 R Load (kN)
NY-500/45 JL7G1A-500/45 680 78 52 18 22 13 120.9
NY-630/45 JL/G1A-630/45 705 80 60 18 22 15 142.9
NY-630/55 JUG1A-630/55 715 80 60 20 24 15 156.1
耐张线夹 ( 钢锚焊接型 )/ Strain clamp (Steel anchor welding type)
适应导线 主要尺寸 Main Dimensions 标称破坏载荷
型号 Type Suitable Specified Failure
Conductor L L1 L2 L3 D D1 D2 R Load (kN)
NY-50/8 LGJ-50/8 375 250 55 190 26 12 16 9 16.1
NY-50/30 LGJ-50/30 425 300 55 190 30 14 16 9 40.5
NY-70/10 LGJ-70/10 405 280 55 200 26 12 16 9 22.3
. NY-70/40 LGJ-70/40 475 350 55 200 32 18 16 10 55.4
. . NY-95/15 LGJ-95/15 405 280 55 205 26 14 16 9 33.3
ףഗތ NY-95/20 LGJ-95/20 405 280 55 205 26 14 16 9 35.4
ףഗތ &
4 & NY-95/55 LGJ-95/55 505 380 55 205 34 20 18 11 74.2
& NY-120/7 LGJ-120/7 405 280 55 205 30 12 16 9 26.2
NY-120/20 LGJ-120/20 425 300 55 205 30 14 16 9 39.0
NY-120/25 LGJ-120/25 445 320 55 205 30 14 16 9 45.5
.
NY-120/70 LGJ-120/70 555 420 65 215 36 22 18 11 93.5
NY-150/8 LGJ-150/8 420 295 55 210 30 12 16 9 31.3
NY-150/20 LGJ-150/20 445 320 55 210 30 14 16 9 44.3
#ތ d $ތ NY-150/25 LGJ-150/25 455 330 55 210 30 14 16 9 51.4
NY-150/35 LGJ-150/35 475 350 55 210 30 16 16 10 61.8
NY-185/25 LGJ-185/25 475 350 55 230 32 14 16 10 56.5
NY-185/30 LGJ-185/30 475 350 55 230 32 16 16 10 61.1
NY-185/45 LGJ-185/45 495 370 55 230 32 18 18 11 76.2
NY-240/30 LGJ-240/30 515 390 55 230 36 16 18 11 71.9
NY-240/40 LGJ-240/40 515 390 55 250 36 16 18 11 79.2
NY-240/55 LGJ-240/55 565 420 65 250 36 20 20 12 97.0
NY-300/15 LGJ-300/15 505 380 55 250 40 14 16 11 64.7
NY-300/20 LGJ-300/20 515 390 55 265 40 14 18 12 71.9
NY-300/25 LGJ-300/25 525 400 55 265 40 14 18 12 79.3
NY-300/40 LGJ-300/40 545 420 55 265 40 16 18 12 87.6
NY-300/50 LGJ-300/50 575 430 65 265 40 18 20 12 98.3
NY-300/70 LGJ-300/70 610 460 70 265 42 22 22 13 121.6
NY-400/20 LGJ-400/20 565 440 55 270 45 14 18 13 84.4
NY-400/25 LGJ-400/25 565 440 55 270 45 14 18 13 91.2
NY-400/35 LGJ-400/35 585 440 65 270 45 16 20 13 98.7
NY-400/50 LGJ-400/50 610 460 70 270 45 20 22 14 117.3
NY-400/65 LGJ-400/65 635 480 70 270 48 22 22 14 128.5
NY-400/95 LGJ-400/95 700 520 80 270 48 26 24 15 162.8
083
