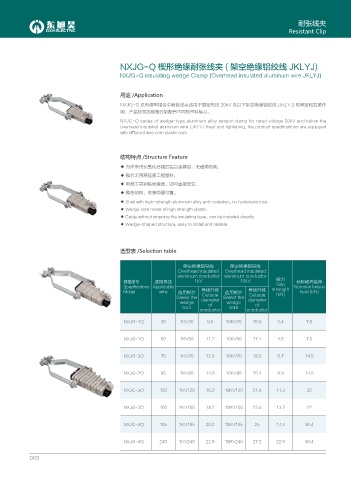

耐张线夹
Resistant Clip

NXJG-Q 楔形绝缘耐张线夹 ( 架空绝缘铝绞线 JKLYJ)

NXJG-Q insulating wedge Clamp (Overhead insulated aluminum wire JKLYJ)

用途 /Application
NXJG-Q 系列楔型铝合金耐张线夹适用于额定电压 20kV 及以下架空绝缘铝绞线 (JKLYJ) 的固定和拉紧作
用，产品按导线规格分别配有不同的塑料模芯。
NXJG-Q series of wedge-type aluminum alloy tension clamp for rated voltage 20kV and below the
overhead insulated aluminum wire (JKLYJ fixed and tightening, the product specifications are equipped
with different wire core plastic core.

结构特点 /Structure Feature
◆ 壳体采用抗氧化高强度铝合金铸造，无磁滞损耗；
◆ 楔芯采用高强度工程塑料；
◆ 电缆不需剥除绝缘层，即可直接安装；
◆ 楔形结构，安装简便可靠。
◆ Shell with high-strength aluminum alloy anti-oxidation, no hysteresis loss.
◆ Wedge core made of high strength plastic.
◆ Cable without stripping the insulating layer, can be installed directly.
◆ Wedge-shaped structure, easy to install and reliable.

选型表 /Selection table

架空绝缘铝导线 架空绝缘铝导线
Overhead insulated Overhead insulated
aluminum conductor aluminum conductor
规格型号 适用导线 1kV 10kV 握力 标称破坏载荷
Grip
Specifications Applicable Nominal failure
Model wire 选用楔芯 导线外径 选用楔芯 导线外径 strength load (kN)
(kN)
Outside
Outside
Select the diameter Select the diameter
wedge of wedge of
core core
conductor conductor
NXJG-1Q 35 1KV35 9.8 10KV35 15.8 3.4 7.5
NXJG-1Q 50 1KV50 11.2 10KV50 17.1 4.6 7.5

NXJG-2Q 70 1KV70 12.8 10KV70 18.8 6.7 14.5

NXJG-2Q 95 1KV95 14.8 10KV95 20.4 8.9 14.5

NXJG-3Q 120 1KV120 16.2 10KV120 21.8 11.3 22

NXJG-3Q 150 1KV150 18.2 10KV150 23.4 13.7 22

NXJG-4Q 185 1KV185 20.2 10KV185 25 17.3 36.4

NXJG-4Q 240 1KV240 22.6 10KV240 27.2 22.5 36.4
