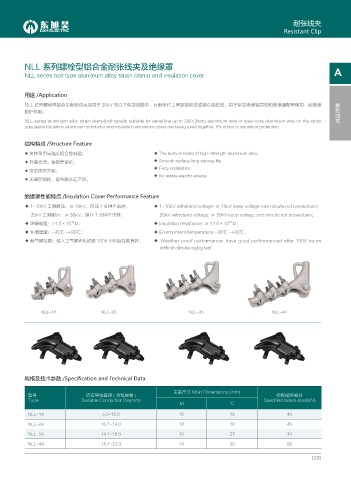

Page 27 - 四川东旭昊电气设备有限公司

耐张线夹
Resistant Clip

NLL 系列螺栓型铝合金耐张线夹及绝缘罩

NLL series bolt type aluminum alloy strain clamp and insulation cover A

用途 /Application
耐张线夹
NLL 系列螺栓型铝合金耐张线夹适用于 20kV 及以下架空线路中，在耐张杆上固定铝绞线或钢芯铝绞线，用于架空绝缘铝导线和绝缘罩配套使用，起绝缘
防护作用。
NLL series aluminium alloy strain clamp(bolt type)is suitable for aerial line up to 20kV,fixing aluminium wire or steel core aluminium wire on the strain
pole,aerial insulation aluminium conductor and insulation aluminium cover are being used together. It's action is insulation protection.

结构特点 /Structure Feature
◆ 夹体采用高强度铝合金制造； ◆ The body is made of high-strength aluminium alloy.
◆ 外表光洁，使用寿命长； ◆ Smooth surface long service life.
◆ Easy installation.
◆ 安装使用方便；
◆ No waste electric energy.
◆ 无磁滞损耗，是节能认证产品。
绝缘罩性能特点 /Insulation Cover Performance Feature

◆ 1-10kV 工频耐压：≥ 18kV，保压 1 分钟不击穿； ◆ 1-10kV withstand voltage: ≥ 18kV keep voltage one minute not breakdown;
20kV 工频耐压：≥ 30kV，保压 1 分钟不击穿； 20kV withstand voltage: ≥ 30kV keep voltage one minute not breakdown;
14
14
◆ 绝缘电阻：>1.0×10 Ω； ◆ Insulation resistance: ≥ 11.0×10 Ω;
◆ 环境温度：-30℃ ~+90℃； ◆ Environment temperature: -30℃ ~+90℃ ;
◆ 耐气候性能：经人工气候老化试验 1008 小时后性能良好。 ◆ Weather proof performance: have good performanced after 1008 hours
artifical climate aging test.

NLL-1A NLL-2A NLL-3A NLL-4A

规格及技术参数 /Specification and Technical Data

主要尺寸 Main Dimensions (mm)
型号 适应导线直径 ( 含包缠物 ) 标称破坏载荷
Type Suitable Conductor Dia(mm) Specified failure load(kN)
M C
NLL-1A 5.0~10.0 16 18 40

NLL-2A 10.1~14.0 16 18 40
NLL-3A 14.1~18.0 16 27 70
NLL-4A 18.1~23.0 18 30 90

008
