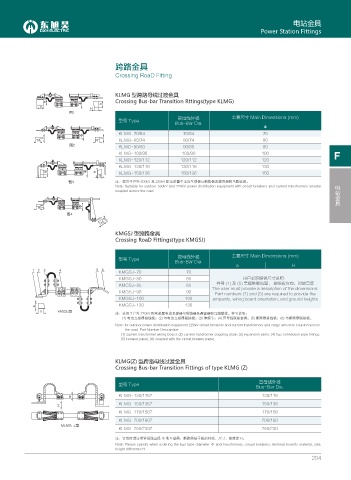

Page 223 - 四川东旭昊电气设备有限公司

电站金具
Power Station Fittings

跨路金具

Crossing RoaD Fitting

KLMG 型跨路母线过渡金具
Crossing Bus-bar Transition Rttings(type KLMG)
* µ
C C
*
ݓ
管母线外径 主要尺寸 Main Dimensions (mm)
型号 Type
Bus-Bar Dia.
Φ
KLMG-70/64 70/64 70
µ
C C
* * KLMG-80/74 80/74 80
ݓ
KLMG-90/80 90/80 90
KLMG-100/90 100/90 100 F
KLMG-120/112 120/112 120
KLMG-130/116 130/116 130
* µ * KLMG-150/136 150/136 150
C C
ݓ 注：适用于户外 500kV 及 220kV 配电装置中电流互感器与断路器及避雷器跨马路联接。 电站金具
Note: Suitable for outdoor 500kV and 220kV power distribution equipment with circuit breakers and current transformers arrester
coupled across the road.
C
* µ
ݓ
C
*
KMGSJ 型跨路金具
Crossing RoaD Fittings(type KMGSJ)

管母线外径 主要尺寸 Main Dimensions (mm)
型号 Type
Bus-Bar Dia.
a H
KMGSJ-70 70
KMGSJ-80 80 用户必须提供尺寸说明：
KMGSJ-85 85 件号 (1) 及 (5) 需提供载流量， 接线板方向，对地高度
The user must provide a description of the dimensions:
KMGSJ-90 90 Part numbers (1) and (5) are required to provide the
KMGSJ-100 100 ampacity, wiring board orientation, and ground heights
KMGSJ-130 130
C
* -/)5,ތ
注：适用于户外 220kV 配电装置电流互感器与断路器及避雷器跨马路联接。件号说明：
(1) 电流互感器接线板；(2) 与电流互感器联接板；(3) 伸缩节；(4) 管母线联接金具；(5) 断路器接线板；(6) 与断路器联接板。
Note: for outdoor power distribution equipment 220kV circuit breakers and current transformers and surge arresters coupled across
the road. Part Number Description:
(1) current transformer wiring board; (2) current transformer coupling plate; (3) expansion joints; (4) bus connection pipe fittings;
(5) breaker panel; (6) coupled with the circuit breaker panel.

KLMG(Z) 型跨路母线过渡金具
Crossing Bus-bar Transition Fittings of type KLMG (Z)

管母线外径
型号 Type
Bus-Bar Dia.
 KLMG-130/116Z 130/116
KLMG-150/136Z 150/136
*
KLMG-170/156Z 170/156
KLMG-200/180Z 200/180
/./) <ތ
KLMG-250/230Z 250/230
注：订货时请注明管母线直径 Φ 和互感器、断路器端子板的材质、尺寸、高度差 H。
Note: Please specify when ordering the bus tube diameter Φ and transformers, circuit breakers, terminal board's material, size,
height difference H.
204
