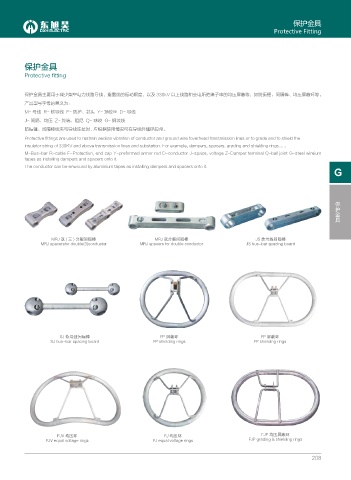

保护金具
Protective Fitting

保护金具

Protective fitting

保护金具主要用于减少架空电力线路导线、避雷线的振动幅度，以及 330kV 以上线路和变电所绝缘子串的均压屏蔽等，如防振锤、间隔棒、均压屏蔽环等。
产品型号字母的意义为：
M- 母线 R- 软导线 F- 防护、封头 Y- 预绞丝 D- 导线
J- 间隔、均压 Z- 终端、阻尼 Q- 球绞 G- 钢绞线
防振锤、间隔棒线夹与导线连接时 . 应根据使用情况可在导线外缠铝包带。
Protective fittings are used to restrain aeolian vibration of conductor and ground wire foverhead transmission lines.or to grade and to shield the
insulator string of 330KV and above transmission lines and substation. For example, dampers, spacers. grading and shielding rings......
M-Bus-bar R-cable F-Protection, end cap Y-preformed armor rod D-conductor J-space, voltage Z-Damper terminal Q-ball joint G-steel wireium
tapes as installing dampers and spacers onto it.
The conductor can be enwound by aluminium tapes as installing dampers and spacers onto it.
G

保护金具

MRJ 双 ( 三 ) 分裂间隔棒 MRJ 双分裂间隔棒 JS 软母线间隔棒
MRJ spacersfor double(3)conductor MRJ spacers for double conductor JS bus-bar spacing board

SJ 软母线间隔棒 FP 屏蔽环 FP 屏蔽环
SJ bus-bar spacing board FP shielding rings FP shielding rings

FJV 均压环 FJ 均压环 FJP 均压屏蔽环
FJV equal voltage rings FJ equal voltage rings FJP grading & shielding rings

208
