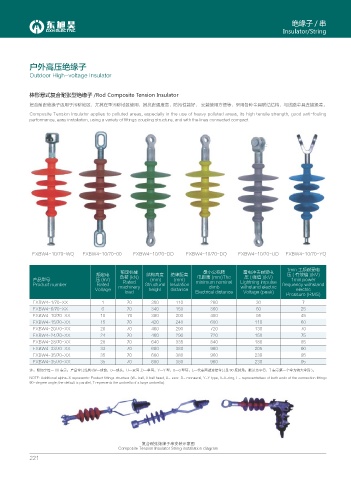

Page 240 - 四川东旭昊电气设备有限公司

绝缘子 / 串
Insulator/String

户外高压绝缘子

Outdoor High-voltage Insulator

棒形悬式复合耐张型绝缘子 /Rod Composite Tension Insulator
复合耐张绝缘子适用于污秽地区，尤其在重污秽地区使用，其抗张强度高，防污性能好， 安装使用方便等，采用各种金具联结结构，与线路金具连接紧凑。
Composite Tension Insulator applies to polluted areas, especially in the use of heavy polluted areas, its high tensile strength, good anti-fouling
performance, easy installation, using a variety of fittings coupling structure, and with the lines connected compact.

FXBW4-10/70-WQ FXBW4-10/70-00 FXBW4-10/70-DD FXBW4-10/70-DQ FXBW4-10/70-UD FXBW4-10/70-YQ

1min 工频耐受电
额定机械 最小公称爬 雷电冲击耐受电
额定电 结构高度 绝缘距离 压 ( 有效值 )(kV)
压 ( 峰值 )(kV)
电距离 (mm)The
产品型号 压 (kV) 负荷 (kN) (mm) (mm) minimum nominal Lightning impulse 1min power
Rated
Product number Rated machinery Structural Insulation climb withstand electric frequency withstand
Voltage height distance electric
load Electrical distance Voltage (peak)
Pressure (RMS)
FXBW4-1/70-XX 1 70 300 110 280 30 7
FXBW4-6/70-XX 6 70 340 150 360 60 25
FXBW4-10/70-XX 10 70 380 200 480 95 45
FXBW4-15/70-XX 15 70 420 240 600 110 60
FXBW4-20/70-XX 20 70 460 290 720 130 70
FXBW4-24/70-XX 24 70 460 290 720 150 75
FXBW4-28/70-XX 28 70 640 335 840 180 85
FXBW4-33/70-XX 33 70 680 380 960 205 90
FXBW4-35/70-XX 35 70 680 380 960 230 95
FXBW4-35/70-XX 35 70 680 380 960 230 95
注：附加字母一 XX 表示：产品金具结构 (W—球窝，0—球头，U—双耳 .D—单耳，Y—Y 型，0—0 型环，L—代表两端连接金具呈 90 度转角；默认为平行，T 表示第一个伞为特大伞形 )。
NOTE: Additional alpha-X represents: Product fittings structure (W- ball, 0 ball head, U- ears .D- monaural, Y-Y type, 0-0-ring, L- representatives of both ends of the connection fittings
90-degree angle; the default is parallel, T represents the umbrella of a large umbrella).

复合耐张绝缘子串安装示意图
Composite Tension Insulator String installation diagram
221
