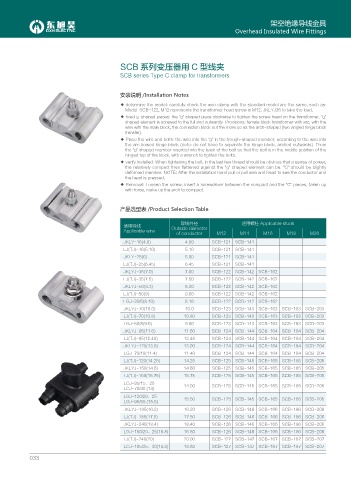

Page 52 - 四川东旭昊电气设备有限公司

架空绝缘导线金具
Overhead Insulated Wire Fittings

SCB 系列变压器用 C 型线夹

SCB series Type C clamp for transformers

安装说明 /Installation Notes
◆ determine the model: carefully check the wire clamp with the standard model are the same, such as:
Model SCB-122, M12 represents the transformer head screw is M12, JKLYJ35 to take the lead.
◆ fixed g-shaped pieces: the "g" shaped piece clockwise to tighten the screw head on the transformer, "g"
shaped element is screwed to the full and outwardly. Provisions: female block transformer with arc, with the
wire with the male block, the connection block out the more so as the arch-shaped (two angled hinge block
transfer).
◆ Place the wire and bolts: the wire into the "g" in the trough-shaped member, according to the wire into
the arc bowed hinge block (note: do not have to separate the hinge block, arched outwards). From
the "g" shaped member inserted into the back of the bolt so that the bolt is in the middle position of the
hinged top of the block, with a wrench to tighten the bolts.
◆ verify installed: When tightening the bolt, in the last few thread should be obvious that a sense of power,
the relatively compact then flattened against the "g" shaped element can be. "G" should be slightly
deformed member. NOTE: After the installation hand pull or pull wire and head to see the conductor and
the head is pressed.
◆ Removal: Loosen the screw, insert a screwdriver between the compact and the "C" pieces, taken up
with force, make up the arch to compact.

产品选型表 /Product Selection Table

导线外径 适用螺柱 Applicable studs
适用导线 Outside diameter
Applicable wire
of conductor M12 M14 M16 M18 M20
JKLY-16(4.8) 4.80 SCB-121 SCB-141
LJ(TJ)-16(5.10) 5.10 SCB-121 SCB-141
JKLY-25(6) 6.00 SCB-121 SCB-141
LJ(TJ)-25(6.45) 6.45 SCB-121 SCB-141
JKLYJ-35(7.0) 7.00 SCB-122 SCB-142 SCB-162
LJ(TJ)-35(7.5) 7.50 SCB-122 SCB-142 SCB-162
JKLYJ-50(8.3) 8.30 SCB-122 SCB-142 SCB-162
LJ(TJ)-50(9) 9.00 SCB-122 SCB-142 SCB-162
LGJ-35/6(8.16) 8.16 SCB-122 SCB-142 SCB-162
JKLYJ-70(10.0) 10.0 SCB-123 SCB-143 SCB-163 SCB-183 SCB-203
LJ(TJ)-70(10.8) 10.80 SCB-123 SCB-143 SCB-163 SCB-183 SCB-203
LGJ-50/8(9.6) 9.60 SCB-123 SCB-143 SCB-163 SCB-183 SCB-203
JKLYJ-95(11.6) 11.60 SCB-124 SCB-144 SCB-164 SCB-184 SCB-204
LJ(TJ)-95(12.48) 12.48 SCB-124 SCB-144 SCB-164 SCB-184 SCB-204
JKLYJ-120(13.0) 13.00 SCB-124 SCB-144 SCB-164 SCB-184 SCB-204
LGJ-70/10(11.4) 11.40 SCB-124 SCB-144 SCB-164 SCB-184 SCB-204
LJ(TJ)-120(14.25) 14.25 SCB-125 SCB-145 SCB-165 SCB-185 SCB-205
JKLYJ-150(14.6) 14.60 SCB-125 SCB-145 SCB-165 SCB-185 SCB-205
LJ(TJ)-150(15.75) 15.75 SCB-125 SCB-145 SCB-165 SCB-185 SCB-205
LGJ-95/15、20
LGJ-70/40 (14) 14.00 SCB-125 SCB-145 SCB-165 SCB-185 SCB-205
LGJ-120/20、25 15.50 SCB-125 SCB-145 SCB-165 SCB-185 SCB-205
LGJ-95/55 (15.5)
JKLYJ-185(16.2) 16.20 SCB-126 SCB-146 SCB-166 SCB-186 SCB-206
LJ(TJ)-185(17.5) 17.50 SCB-126 SCB-146 SCB-166 SCB-186 SCB-206
JKLYJ-240(18.4) 18.40 SCB-126 SCB-146 SCB-166 SCB-186 SCB-206
LGJ-150/20、25(16.8) 16.80 SCB-126 SCB-146 SCB-166 SCB-186 SCB-206
LJ(TJ)-240(20) 20.00 SCB-127 SCB-147 SCB-167 SCB-187 SCB-207
LGJ-185/25、30(18.8) 18.80 SCB-127 SCB-147 SCB-167 SCB-187 SCB-207
