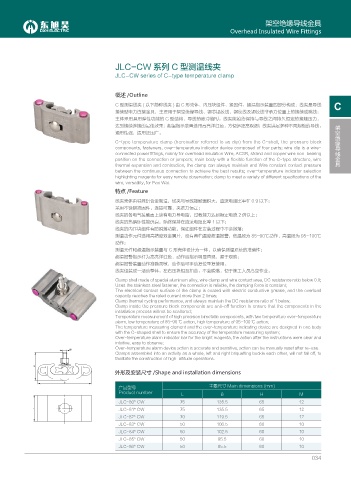

架空绝缘导线金具
Overhead Insulated Wire Fittings

JLC-CW 系列 C 型测温线夹

JLC-CW series of C-type temperature clamp

概述 /Outline
C 型测温线夹 ( 以下简称线夹 ) 由 C 形壳体、内压块组件、紧固件、超温指示装置四部分构成；线夹是导线 C
接续型电力连接金具，主要用于架空绝缘导线、钢芯铝绞线、钢绞线及铜绞线非承力位置上的接续或跳线；
主体采用具用弹性功能的 C 型结构，导线热胀冷缩时，线夹能始终保持与导线之间持久恒定的接触压力，
达到接续连接的最佳效果；超温指示装置选用高亮洋红色，方便远距离观测；线夹满足多种不同规格的导线， 架空绝缘导线金具
通用性强，适用泛围广。
C-type temperature clamp (hereinafter referred to as clip) from the C-shell, the pressure block
components, fasteners, over-temperature indicator device composed of four parts; wire clip is a wire-
connected power fittings, mainly for overhead insulation Wire, ACSR, strand and copper wire non-bearing
position on the connection or jumpers; main body with a flexible function of the C-type structure, wire
thermal expansion and contraction, the clamp can always maintain and Wire constant contact pressure
between the continuous connection to achieve the best results; over-temperature indicator selection
highlighting magenta for easy remote observation; clamp to meet a variety of different specifications of the
wire, versatility, for Pan Wai.
特点 /Feature

线夹壳体由特殊铝合金制造，线夹与导线接触面积大，直流电阻比率在 0.9 以下；
采用不锈钢紧固件，连接可靠，夹紧力恒定；
线夹的各电气接触面上涂有电力导电脂，过载能力达到额定电流 2 倍以上；
线夹的热循环性能优良，始终保持在直流电阻比率 1 以下；
线夹的内压块组件有防脱落功能，保证组件在安装过程中不会散落；
测温动作元件选用高精度双金属片，设有两档温度超温报警，低温段为 85~90℃动作，高温段为 95~100℃
动作；
测温元件和超温指示装置与 C 形壳体设计为一体，以确保测温系统的准确性；
超温报警指示杆为高亮洋红色，动作后指示明显直观，易于观察；
超温报警装置动作准确灵敏，动作后可手动复位重复使用。
线夹组装成一活动整体，左右压块相互扣合，不会脱落，便于施工人员高空作业。
Clamp shell made of special aluminum alloy, wire clamp and wire contact area, DC resistance ratio below 0.9;
Uses the stainless steel fastener, the connection is reliable, the clamping force is constant;
The electrical contact surface of the clamp is coated with electric conductive grease, and the overload
capacity reaches the rated current more than 2 times;
Clamp thermal cycling performance, and always maintain the DC resistance ratio of 1 below;
Clamp inside the pressure block components are anti-off function to ensure that the components in the
installation process will not be scattered;
Temperature measurement of high precision bimetallic components, with two temperature over-temperature
alarm, low temperature of 85~90 ℃ action, high temperature of 95~100 ℃ action;
The temperature measuring element and the over-temperature indicating device are designed in one body
with the C-shaped shell to ensure the accuracy of the temperature measuring system;
Over-temperature alarm indicator bar for the bright magenta, the action after the instructions were clear and
intuitive, easy to observe;
Over-temperature alarm device action is accurate and sensitive, action can be manually reset after re-use.
M
Clamps assembled into an activity as a whole, left and right briquetting buckle each other, will not fall off, to
facilitate the construction of high-altitude operations.
H
外形及安装尺寸 /Shape and installation dimensions

B
产品型号 主要尺寸 Main dimensions (mm)
Product number L B H M
JLC-80* CW 75 135.5 65 12
JLC-81* CW 75 135.5 65 12
L
JLC-82* CW 70 119.5 65 12
JLC-83* CW 50 106.5 60 10
JLC-84* CW 50 102.5 60 10
JLC-85* CW 50 95.5 60 10
JLC-86* CW 50 95.5 60 10
