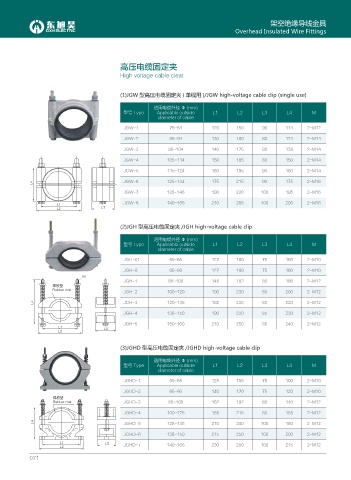

架空绝缘导线金具
Overhead Insulated Wire Fittings

高压电缆固定夹

High voltage cable cleat

(1)JGW 型高压电缆固定夹 ( 单线用 )/JGW high-voltage cable clip (single use)

适用电缆外径 Φ (mm)
型号 Type Applicable outside L1 L2 L3 L4 M
diameter of cable
JGW-1 75~84 120 150 90 114 2-M12
JGW-2 85~94 130 160 80 124 2-M14

JGW-3 95~104 140 175 80 138 2-M14
JGW-4 105~114 150 185 80 150 2-M14
JGW-5 115~124 160 195 90 160 2-M14

. JGW-6 125~134 175 215 90 175 2-M16
JGW-7 135~146 190 230 100 195 2-M16

. JGW-8 140~165 210 265 100 205 2-M16
. .

(2)JGH 型高压电缆固定夹 /JGH high-voltage cable clip

适用电缆外径 Φ (mm)
型号 Type Applicable outside L1 L2 L3 L4 M
diameter of cable
JGH-01 55-65 127 160 75 160 2-M10

JGH-0 65~80 127 160 75 160 2-M10
/
JGH-1 80~100 148 182 80 180 2-M12
඼ᑬޘ
4WDDGT OCV
JGH-2 100~120 190 230 80 200 2-M12
. JGH-3 120~136 192 230 80 220 2-M12
JGH-4 136~150 190 230 85 230 2-M12
JGH-5 150~160 210 250 85 240 2-M12
. .
.

(3)JGHD 型高压电缆固定夹 /JGHD high-voltage cable clip

适用电缆外径 Φ (mm)
型号 Type Applicable outside L1 L2 L3 L4 M
diameter of cable
JGHD-1 55~65 125 155 75 100 2-M10

JGHD-2 65~80 140 170 75 120 2-M10
඼ᑬޘ
4WDDGT OCV JGHD-3 80~100 162 192 80 140 2-M12
JGHD-4 100~125 185 215 80 165 2-M12
. JGHD-5 126~136 210 240 100 180 2-M12

JGHD-6 136~150 215 250 100 200 2-M12
. .
. JGHD-7 140~166 230 280 100 215 2-M12
