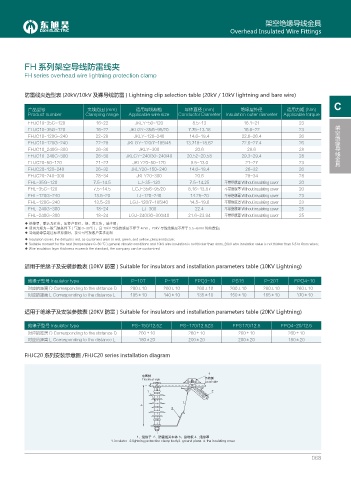

架空绝缘导线金具
Overhead Insulated Wire Fittings

FH 系列架空导线防雷线夹

FH series overhead wire lightning protection clamp

防雷线夹选型表 (20kV/10kV 及裸导线防雷 ) Lightning clip selection table (20kV / 10kV lightning and bare wire)
C
产品型号 夹线范围 (mm) 适用导线规格 导体直径 (mm) 绝缘层外径 适用力矩 (Nm)
Product number Clamping range Applicable wire size Conductor Diameter Insulation outer diameter Applicable torque
FHJC10-35G~120 16~22 JKLY-50~120 8.5~13 16.1~21 23 架空绝缘导线金具
FHJC10-35G~120 16~22 JKLGY-35/6~95/20 7.75~13.18 16.6~22 23
FHJC10-120G~240 22~28 JKLY-120~240 14.6~18.4 22.6~26.4 26
FHJC10-120G~240 22~28 JKLGY-120/7~185/45 13.718~18.62 22.6~27.4 26
FHJC10_240G~300 26~30 JKLY-300 20.6 28.6 28
FHJC10_240G~300 26~30 JKLGY-240/30~240/40 20.52~20.58 29.3~29.4 28
FHJC20-50~120 21~27 JKLY20-50~120 8.5~13.0 21~27 23
FHJC20-120~240 26~32 JKLY20-150~240 14.6~18.4 26~32 26
FHJC20-240~300 28~34 JKLY20-300 20.6 28~34 28
FHL-35G~120 7.5~14.5 LJ-35~120 7.5~14.25 不带绝缘罩 Without insulating cover 20
FHL-35G~120 7.5~14.5 LGJ-35/6~95/20 8.16~13.87 不带绝缘罩 Without insulating cover 20
FHL-120G~240 13.5~20 LJ-120~240 14.25~20 不带绝缘罩 Without insulating cover 23
FHL-120G~240 13.5~20 LGJ-120/7~185/40 14.5~19.6 不带绝缘罩 Without insulating cover 23
FHL-240G~300 18~24 LJ-300 22.4 不带绝缘罩 Without insulating cover 25
FHL-240G~300 18~24 LGJ-240/30~300/40 21.6~23.94 不带绝缘罩 Without insulating cover 25
◆ 绝缘罩，默认为红色，如客户要红、绿、黄三色，请注明；
◆ 适用力矩为一般气候条件下 ( 气温 0~30℃ )，且 10kV 导线绝缘层不厚于 4mm，20kV 导线绝缘层不厚于 5.5~6mm 时的数值；
◆ 导线绝缘层超过标准厚度时，我公司可按客户要求定制
◆ Insulation cover, the default is red, as customers want to red, green, and yellow, please indicate;
◆ Suitable moment for the next (temperature 0~30 ℃ ) general climatic conditions and 10kV wire insulation is not thicker than 4mm, 20kV wire insulation value is not thicker than 5.5 to 6mm when;
◆ Wire insulation layer thickness exceeds the standard, the company can be customized

适用于绝缘子及安装参数表 (10KV 防雷 ) Suitable for insulators and installation parameters table (10KV Lightning)

绝缘子型号 Insulator type P-10T P-15T FPQ3-10 PS15 P-20T FPQ4-10
对应的距离 D Corresponding to the distance D 260±10 260±10 260±10 260±10 260±10 260±10
对应的距离 L Corresponding to the distance L 105±10 140±10 135±10 150±10 165±10 170±10

适用于绝缘子及安装参数表 (20KV 防雷 ) Suitable for insulators and installation parameters table (20KV Lightning)

绝缘子型号 Insulator type PS-150/12.5Z PS-170/12.5ZS FPS170/12.5 FPQ4-20/12.5
对应的距离 D Corresponding to the distance D 260±10 260±10 260±10 260±10
对应的距离 L Corresponding to the distance L 180±20 200±20 200±20 180±20

FHJC20 系列安装示意图 /FHJC20 series installation diagram

ჇܭҊ
'NGEVTKECN UKFG ៦ᕮҊ
.QCF UKFG

.
*

nj፬᎟ࢅ nj᪢᫮ፏߵಹѠ nj஡ݤೞ nj፬᎟Ꮜ
KPUWNCVQT NKIJVPKPI RTQVGEVKQP ENCOR DQF[ ITQWPF RNCPG VJG KPUWNCVKPI EQXGT

068
