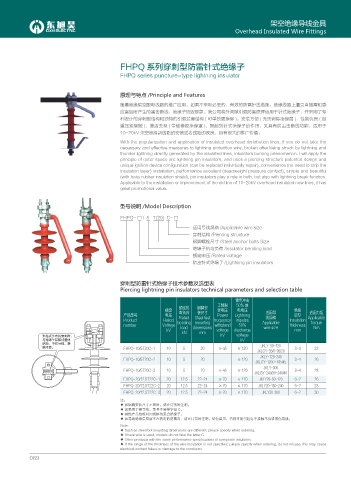

FHPQ 系列穿刺型防雷针式绝缘子

FHPQ series puncture-type lightning insulator

原理与特点 /Principle and Features
随着绝缘架空配电线路的推广应用，如果不采取必要的、有效的防雷护线措施，绝缘线路上遭受直接雷和感
应雷后所产生的雷击断线、绝缘子烧毁现象。我公司将外间隙引弧防雷原理运用于针式绝缘子，并采用了专
利设计的穿刺型结构和独特的引弧装置结构 ( 可单独更换修 )，安装方便 ( 无需剥除绝缘层 )、性能优良 ( 自
重压紧接触 )、简洁美观 ( 带硅橡胶绝缘罩 )，既起到针式绝缘子的作用，又具有防雷击断线功能。适用于
10~20kV 架空绝缘新线路的安装或老线路的改良，具有很大的推广价值。
With the popularization and application of insulated overhead distribution lines, if you do not take the
necessary and effective measures to lightning protection wire, broken after being struck by lightning and
thunder lightning directly generated by the insulated lines, insulators burning phenomenon. I will apply the
principle of outer space arc lightning pin insulators, and uses a piercing structure patented design and
unique ignition device configuration (can be replaced individually repair), convenience (no need to strip the
insulation layer) installation, performance excellent (deadweight pressure contact), simple and beautiful
(with baby rubber insulation shield), pin insulators play a role in both, but also with lightning break function.
Applicable to the installation or improvement of the old line of 10~20kV overhead insulated new lines, it has
great promotional value.

型号说明 /Model Description
FHPQ- □ / 5 T(20) C- □
适用导线规格 /Applicable wire size
穿刺结构 /Piercing structure
钢脚螺栓尺寸 /Steel anchor bolts Size
绝缘子抗弯负荷 /Insulator bending load
额定电压 /Rated voltage
防雷针式绝缘子 /Lightning pin insulators

穿刺型防雷针式绝缘子技术参数及选型表
Piercing lightning pin insulators technical parameters and selection table
雷电冲击
工频耐 50% 放
额定抗 钢脚安
额定 受电压 电电压 绝缘
适用力矩
装尺寸
产品型号 电压 弯负荷 Steel feet Power Lightning 适用导 层厚 Applicable
Rated
线规格
Product Rated bending mounting frequency impulse Applicable Insulation torque
number Voltage load dimensions withstand 50% wire size thickness Nm
kV voltage discharge mm
kN mm
ዺബ৑ՌॱᅅቯըᲘ͘ kV voltage
θ፬᎟ࢅ᧳ঊ૝తѠ kV
፣ೠ͘ηъࣝፏ͘஡
ᜳؕᬋǍ FHPQ-10/5T20C-1 10 5 20 ≥ 45 ≤ 120 JKLY-50~120 3~4 23
JKLGY-35/6~95/20
JKLY-120-240
FHPQ-10/5T20C-2 10 5 20 ≤ 120 3~4 26
JKLGY-120/7~185/45
JKLY-300
FHPQ-10/5T20C-3 10 5 20 ≥ 45 ≤ 120 3~4 28
JKLGY-240/30~240/40
FHPQ-20/12.5T22C-1 20 12.5 22~24 ≥ 70 ≤ 170 JKLY20-50~120 6~7 26
FHPQ-20/12.5T22C-2 20 12.5 22~24 ≥ 70 ≤ 170 JKLY20-150~240 6~7 28
FHPQ-20/12.5T22C-3 20 12.5 22~24 ≥ 70 ≤ 170 JKLY20-300 6~7 30
注：
◆ 如钢脚安装尺寸不同时，请在订货时注明。
◆ 如果用于裸导线，型号不要带字母 C。
◆ 其他产品性能同同规格的复合绝缘子。
◆ 如导线绝缘层厚度不在规定的范围内，请在订货时注明，切勿误用，否则可能引起电子接触不良或损伤导线。
Note:
◆ Such as steel foot mounting dimensions are different, please specify when ordering.
◆ If bare wire is used, models do not take the letter C.
◆ Other products with the same performance specifications of composite insulators.
◆ If the range of the thickness of the wire insulation is not specified, please specify when ordering, do not misuse, this may cause
electrical contact failure or damage to the conductor.
