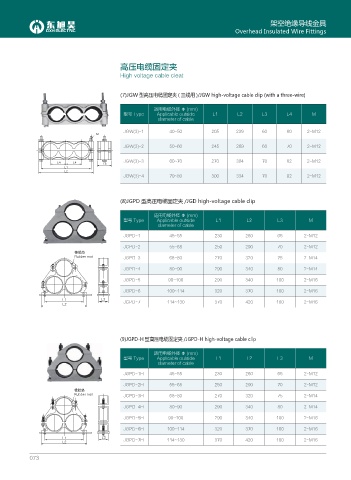

Page 92 - 四川东旭昊电气设备有限公司

架空绝缘导线金具
Overhead Insulated Wire Fittings

高压电缆固定夹

High voltage cable cleat

(7)JGW 型高压电缆固定夹 ( 三线用 )/JGW high-voltage cable clip (with a three-wire)

适用电缆外径 Φ (mm)
型号 Type Applicable outside L1 L2 L3 L4 M
diameter of cable

JGW(3)-1 40~50 205 239 60 60 2-M12
/
JGW(3)-2 50~60 245 269 60 70 2-M12

JGW(3)-3 60~70 270 304 70 82 2-M12
. . .
.
.
JGW(3)-4 70~80 300 334 70 92 2-M12

(8)JGPD 型高压电缆固定夹 /JGD high-voltage cable clip

适用电缆外径 Φ (mm)
型号 Type Applicable outside L1 L2 L3 M
diameter of cable
JGPD-1 45~55 230 260 65 2-M12
JGPD-2 55~68 250 290 70 2-M12
඼ᑬޘ
4WDDGT OCV JGPD-3 68~80 270 320 75 2-M14
JGPD-4 80~90 290 340 80 2-M14

JGPD-5 90~100 290 340 100 2-M16
JGPD-6 100~114 320 370 100 2-M16
. . JGPD-7 114~130 370 420 100 2-M16
.

(9)JGPD-H 型高压电缆固定夹 /JGPD-H high-voltage cable clip

适用电缆外径 Φ (mm)
型号 Type Applicable outside L1 L2 L3 M
diameter of cable
JGPD-1H 45~55 230 260 65 2-M12
JGPD-2H 55~68 250 290 70 2-M12
඼ᑬޘ
4WDDGT OCV JGPD-3H 68~80 270 320 75 2-M14

JGPD-4H 80~90 290 340 80 2-M14
JGPD-5H 90~100 290 340 100 2-M16

JGPD-6H 100~114 320 370 100 2-M16
. . JGPD-7H 114~130 370 420 100 2-M16
.

073
