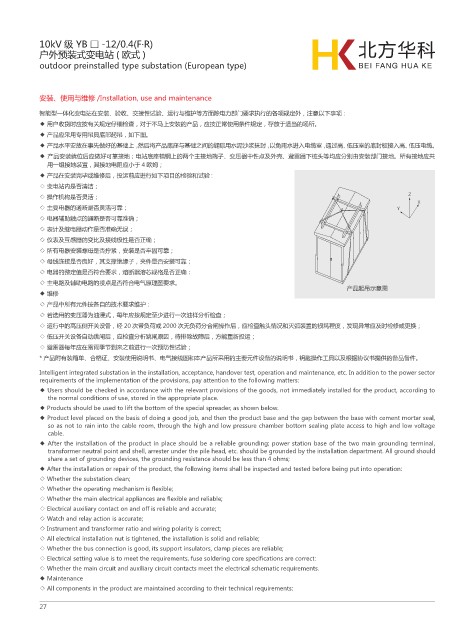

10kV 级 YB □ -12/0.4(F·R)
户外预装式变电站 ( 欧式 )
outdoor preinstalled type substation (European type)

安装、使用与维修 /Installation, use and maintenance

智能型一体化变电站在安装、验收、交接性试验、运行与维护等方面除电力部门要求执行的各项规定外，注意以下事项：
◆ 用户收货时应按有关规定仔细检查，对于不马上安装的产品，应按正常使用条件规定，存放于适当的场所。
◆ 产品应采用专用吊具底部起吊，如下图。
◆ 产品水平安放在事先做好的基础上，然后将产品底座与基础之间的缝隙用水泥沙浆抹封，以免雨水进入电缆室，通过高、低压室的底封板接入高、低压电缆。
◆ 产品安装就位后应做好可靠接地；电站底座槽钢上的两个主接地端子、变压器中性点及外壳、避雷器下桩头等均应分别由安装部门接地。所有接地应共
用一组接地装置，其接地电阻应小于 4 欧姆；
◆ 产品在安装完毕或维修后，投运前应进行如下项目的检验和试验 :
◇ 变电站内是否清洁；
◇ 操作机构是否灵活； ;
9
◇ 主要电器的通断是否灵活可靠； :
◇ 电器辅助触点的通断是否可靠准确；
◇ 表计及继电器动作是否准确无误；
◇ 仪表及互感器的变比及接线极性是否正确；
◇ 所有电器安装螺母是否拧紧，安装是否牢固可靠；
◇ 母线连接是否良好，其支撑绝缘子，夹件是否安装可靠；
◇ 电器的整定值是否符合要求，熔断器溶芯规格是否正确：
◇ 主电路及辅助电路的接点是否符合电气原理图要求。
产品起吊示意图
◆ 维修
◇ 产品中所有元件按各自的技术要求维护：
◇ 若选用的变压器为油浸式，每年应按规定至少进行一次油样分析检查；
◇ 运行中的高压侧开关设备，经 20 次带负荷或 2000 次无负荷分合闸操作后，应检查触头情况和灭弧装置的损耗程度，发现异常应及时检修或更换；
◇ 低压开关设备自动跳闸后，应检查分析跳闸原因，待排除故障后，方能重新投运；
◇ 避雷器每年应在雷雨季节到来之前进行一次预防性试验；
* 产品附有装箱单、合格证、安装使用说明书、电气接线图和本产品所采用的主要元件设备的说明书，钥匙操作工具以及根据协议书提供的备品备件。
Intelligent integrated substation in the installation, acceptance, handover test, operation and maintenance, etc. In addition to the power sector
requirements of the implementation of the provisions, pay attention to the following matters:
◆ Users should be checked in accordance with the relevant provisions of the goods, not immediately installed for the product, according to
the normal conditions of use, stored in the appropriate place.
◆ Products should be used to lift the bottom of the special spreader, as shown below.
◆ Product level placed on the basis of doing a good job, and then the product base and the gap between the base with cement mortar seal,
so as not to rain into the cable room, through the high and low pressure chamber bottom sealing plate access to high and low voltage
cable.
◆ After the installation of the product in place should be a reliable grounding; power station base of the two main grounding terminal,
transformer neutral point and shell, arrester under the pile head, etc. should be grounded by the installation department. All ground should
share a set of grounding devices, the grounding resistance should be less than 4 ohms;
◆ After the installation or repair of the product, the following items shall be inspected and tested before being put into operation:
◇ Whether the substation clean;
◇ Whether the operating mechanism is flexible;
◇ Whether the main electrical appliances are flexible and reliable;
◇ Electrical auxiliary contact on and off is reliable and accurate;
◇ Watch and relay action is accurate;
◇ Instrument and transformer ratio and wiring polarity is correct;
◇ All electrical installation nut is tightened, the installation is solid and reliable;
◇ Whether the bus connection is good, its support insulators, clamp pieces are reliable;
◇ Electrical setting value is to meet the requirements, fuse soldering core specifications are correct:
◇ Whether the main circuit and auxiliary circuit contacts meet the electrical schematic requirements.
◆ Maintenance
◇ All components in the product are maintained according to their technical requirements:
