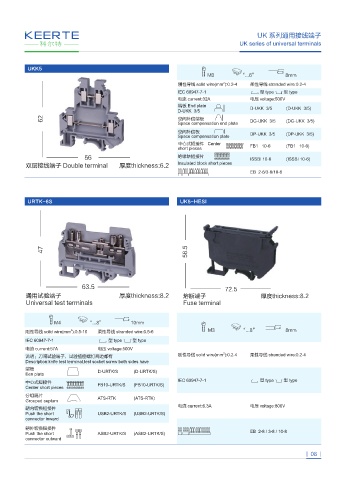

UK 系列通用接线端子
                                                                                   UK series of universal terminals




           UKK5
                                                                        .           Ą    ą          NN
                                                                              2
                                                              刚性导线 solid wire(mm ):0.2-4  柔性导线 stranded wire:0.2-4
                                                              IEC 60947-7-1                型 type    型 type
                                                              电流 current:32A           电压 voltage:500V
                                                              端板 End plate
                                                              D-UKK  3/5               D-UKK  3/5  (D-UKK  3/5)
                                                              空间补偿端板                   DG-UKK  3/5  (DG-UKK  3/5)
                                                              Space compensation end plate
                                                              空间补偿板                    DP-UKK  3/5  (DP-UKK  3/5)
                                                              Space compensation plate
                                                              中心式短接件   Center          FB1   10-6  (FB1   10-6)
                                                              short pieces
                                                              绝缘块短接片                   ISSBI 10-6  (ISSBI 10-6)
          ࣹᅯᣒ㏬〜ၽ %PVCMF UFSNJOBM          ࣇᏓUIJDLOFTT         Insulated block short pieces
                                                                                       EB  2-6/3-6/10-6





           URTK-6S                                             UK5-HESI
















          䕇⩕䄂侹〜ၽ                          ࣇᏓUIJDLOFTT           ⛁᫚〜ၽ                       ࣇᏓUIJDLOFTT
          6OJWFSTBM UFTU UFSNJOBMT                              'VTF UFSNJOBM



                    .          Ą    ą           NN
                         2
          刚性导线 solid wire(mm ):0.5-10  柔性导线 stranded wire:0.5-6          .          Ą    ą          NN
          IEC 60947-7-1                型 type    型 type
          电流 current:57A           电压 voltage:500V
                                                                              2
          说明:刀闸试验端子,试验插座螺钉两边都有                                刚性导线 solid wire(mm ):0.2-4  柔性导线 stranded wire:0.2-4
          Description:knife test terminal,test socket screw both sides have
          端板
          Een plate                D-URTK/S    (D-URTK/S)
                                                              IEC 60947-7-1                型 type    型 type
          中心式短接件
          Center short pieces      FB10-URTK/S  (FB10-URTK/S)
          分组隔片
          Grouped septum           ATS-RTK     (ATS-RTK)
                                                              电流 current:6.3A          电压 voltage:800V
          朝内切换短接件
          Push the short           USB2-URTK/S  (USB2-URTK/S)
          connector inward
          朝外切换短接件
          Push the short           ASB2-URTK/S  (ASB2-URTK/S)                          EB  2-8 / 3-8 / 10-8
          connector outward
