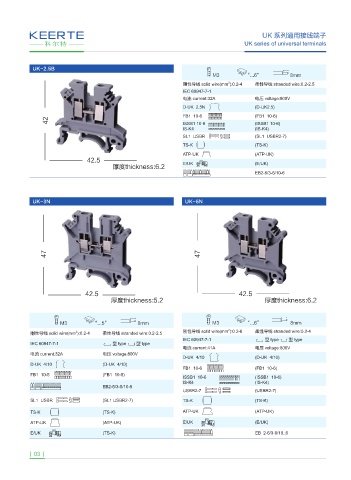

UK 系列通用接线端子
UK series of universal terminals

UK-2.5B
. Ą ą NN
刚性导线 solid wire(mm ):0.2-4 柔性导线 stranded wire:0.2-2.5
2
IEC 60947-7-1
电流 current:32A 电压 voltage:800V
D-UK 2.5N (D-UK2.5)
FB1 10-6 (FB1 10-6)
ISSB1 10-6 (ISSB1 10-6)
IS-K4 (IS-K4)
SL1 USBR (SL1 USBR2-7)
TS-K (TS-K)
ATP-UK (ATP-UK)

ࣇᏓUIJDLOFTT E/UK (E/UK)
EB2-6/3-6/10-6

UK-3N UK-5N

ࣇᏓUIJDLOFTT ࣇᏓUIJDLOFTT

. Ą ą NN . Ą ą NN
2
刚性导线 solid wire(mm ):0.2-4 柔性导线 stranded wire:0.2-2.5 刚性导线 solid wire(mm ):0.2-6 柔性导线 stranded wire:0.2-4
2
IEC 60947-7-1 型 type 型 type
IEC 60947-7-1 型 type 型 type
电流 current:41A 电压 voltage:800V
电流 current:32A 电压 voltage:800V
D-UK 4/10 (D-UK 4/10)
D-UK 4/10 (D-UK 4/10)
FB1 10-6 (FB1 10-6)
FB1 10-5 (FB1 10-5)
ISSB1 10-6 (ISSB1 10-6)
IS-K4 (IS-K4)
EB2-5/3-5/10-5
USBR2-7 (USBR2-7)
SL1 USBR (SL1 USBR2-7) TS-K (TS-K)
TS-K (TS-K) ATP-UK (ATP-UK)
ATP-UK (ATP-UK) E/UK (E/UK)
E/UK (TS-K) EB 2-6/3-6/10..6

| 03 |
