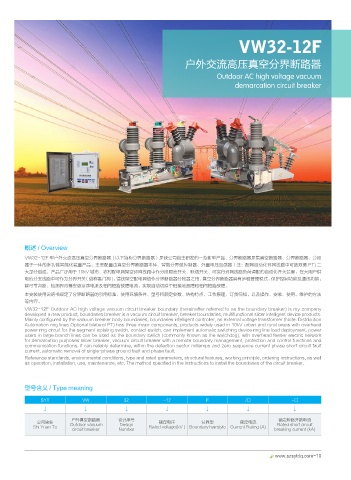

VW32-12F

户外交流高压真空分界断路器

Outdoor AC high voltage vacuum
demarcation circuit breaker

概述 / Overview

VW32-12F 型户外交流高压真空分界断路器（以下简称分界断路器）是我公司自主研发的一款新型产品，分界断路器是集真空断路器、分界断路器、分段
器于一体的多功能智能化装置产品。主要配置由真空分界断路器本体、智能分界型控制器、外置电压互感器（注：配网自动化环网线路中可选双侧 PT) 三
大部分组成，产品广泛用于 10kV 城市、农村配电网架空环网线路中作分段隔离开关、联络开关、可实行环网线路负荷调配的自动化开关装置，在大用户供
电的分支线路中可作为分界开关（俗称看门狗 )，馈线架空配电网络作分界断路器分段器之用，真空分界断路器具有远程管理模式，保护控制功能及通讯功能。
能可靠判断、检测界内毫安级零序电流及相间短路故障电流，实现自动切除单相接地故障和相间短路故障。
本安装使用说明书规定了分界断路器的引用标准、使用环境条件、型号和额定参数、结构特点、工作原理、订货须知、以及操作、安装、使用、维护的方法
等内容。
VW32-12F Outdoor AC high voltage vacuum circuit breaker boundary (hereinafter referred to as the boundary breaker) is my company
developed a new product, boundaries breaker is a vacuum circuit breaker, breaker boundaries, multifunctional slicer intelligent device products.
Mainly configured by the vacuum breaker body boundaries, boundaries intelligent controller, an external voltage transformer (Note: Distribution
Automation ring lines Optional bilateral PT) has three major components, products widely used in 10kV urban and rural areas with overhead
power ring circuit for the segment isolating switch, contact switch, can implement automatic switching device ring line load deployment, power
users in large branch lines can be used as the boundary switch (commonly known as the watchdog), with overhead feeder electric network
for demarcation purposes slicer breaker, vacuum circuit breaker with a remote boundary management, protection and control functions and
communication functions. It can reliably determine, within the detection sector milliamps and zero sequence current phase short circuit fault
current, automatic removal of single-phase ground fault and phase fault.
Reference standards, environmental conditions, type and rated parameters, structural features, working principle, ordering instructions, as well
as operation, installation, use, maintenance, etc. The method specified in the instructions to install the boundaries of the circuit breaker.

型号含义 / Type meaning

SYT VW 32 -12 F /□ -□
↓ ↓ ↓ ↓ ↓ ↓ ↓

户外真空断路器 设计序号 额定短路开断电流
公司简称 额定电压 分界型 额定电流
Shi Yuan Te Outdoor vacuum Design Rated voltage(kV ) Boundary hairstyle Current Rating (A) Rated short circuit
circuit breaker Number breaking current (kA)
